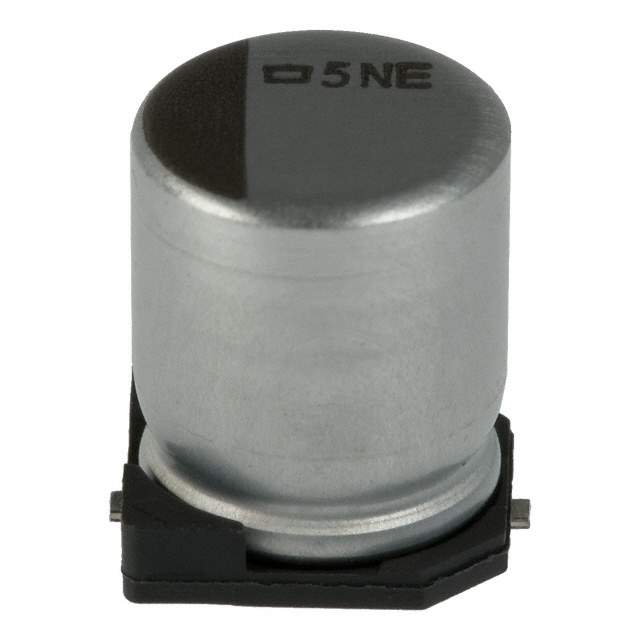

EMVE630ADA100MF55G Real Image
Same model may have multiple batches, images only for reference.

EMVE630ADA100MF55G

Part No EMVE630ADA100MF55G
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 10UF 20% 63V SMD / 10 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series Alchip™- MVE
Package Tape & Reel
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 63 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 32 mA @ 120 Hz
Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.205" (5.20mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 565-2264-6,565-2264-2,565-2264-1
Standard Package 1,000
Win Source Part Number 1002598-EMVE630ADA100MF55G
Ultra Librarian 3D Model Ultra Librarian EMVE630ADA100MF55G CAD Model

Description

The EMVE630ADA100MF55G is a 10 µF aluminum electrolytic capacitor from United Chemi-Con's Alchip™- MVE series.

  • Capacitance Tolerance: ±20%
  • Voltage Rating: 63 V
  • Suitable for: general purpose applications
  • Package: radial, can - SMD
  • Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
  • Low Equivalent Series Resistance (ESR): Yes
  • Lifetime: 1000 Hrs @ 105°C
  • Ripple Current: 32 mA @ 120 Hz (low frequency)
