Same model may have multiple batches, images only for reference.

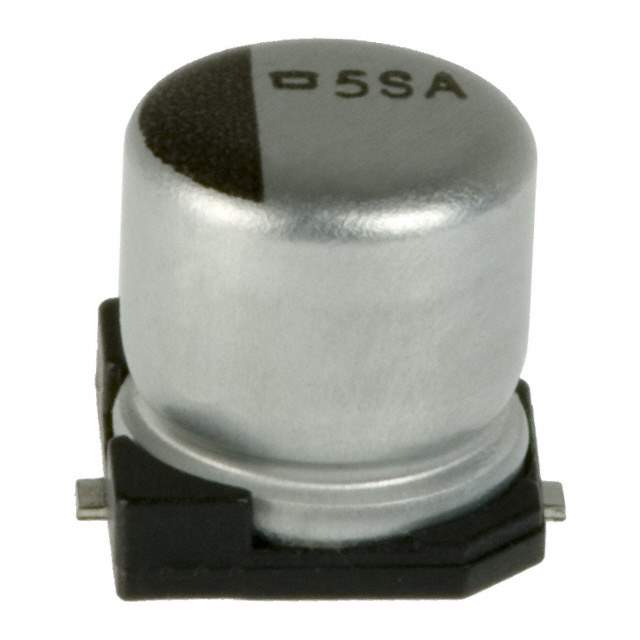

EMVA100ADA470ME55G Real Image
Same model may have multiple batches, images only for reference.

EMVA100ADA470ME55G

Part No EMVA100ADA470ME55G
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 10V SMD / 47 µF 10 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series Alchip™- MVA
Package Tape & Reel
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 10 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 44 mA @ 120 Hz
Ripple Current @ High Frequency 47.52 mA @ 100 kHz
Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.205" (5.20mm)
Surface Mount Land Size 0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 565-2074-2,565-2074-1,565-2074-6
Standard Package 1,000
Win Source Part Number 993442-EMVA100ADA470ME55G
Ultra Librarian 3D Model Ultra Librarian EMVA100ADA470ME55G CAD Model

Description

The United Chemi-Con EMVA100ADA470ME55G is an aluminum electrolytic capacitor that has a capacitance of 47 µF and a rated voltage of 10V.

  • Tolerance: ±20%
  • Operating Temperature Range: -40°C to 85°C
  • The EMVA100ADA470ME55G is a surface-mount device that has a radial, can - SMD package.
  • Height: 0.205"
  • Dimension: 0.197" Dia
  • Ripple Current: 44 mA @ 120 Hz and 47.52 mA @ 100 kHz
  • Lifetime: 2000 Hrs @ 85°C
