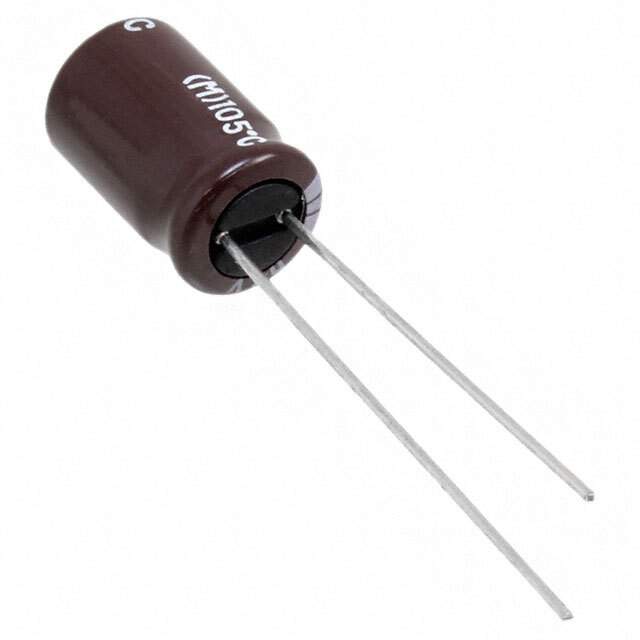

EKZN100ELL561MHB5D Real Image
Same model may have multiple batches, images only for reference.

EKZN100ELL561MHB5D

Part No EKZN100ELL561MHB5D
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 560UF 20% 10V RADIAL / 560 µF 10 V Aluminum Electrolytic Capacitors Radial, Can 9000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer United Chemi-Con
Packaging Bulk
Capacitance 560 µF
Tolerance ±20%
Voltage - Rated 10 V
Lifetime @ Temp. 9000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 600 mA @ 120 Hz
Ripple Current @ High Frequency 1.2 A @ 100 kHz
Impedance 75 mOhms
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Mounting Through Hole
Case / Package Radial, Can
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Standard Package 1,000
Win Source Part Number 1331007-EKZN100ELL561MHB5D
Ultra Librarian 3D Model Ultra Librarian EKZN100ELL561MHB5D CAD Model

Description

The United Chemi-Con EKZN100ELL561MHB5D is a through hole aluminum electrolytic capacitor with a capacitance of 560 µF and a voltage rating of 10 V. Bold the product name (e.g., BAV99S,135 → EKZN100ELL561MHB5D) and manufacturer (e.g., Nexperia USA Inc. → United Chemi-Con).

  • Capacitance: 560 µF
  • Voltage Rating: 10 V
  • Polarization: Polarized
  • Tolerance: ±20%
  • Application: General Purpose
  • Lifetime: 9000 hours @ 105°C
  • ESR: Not Specified
  • Impedance: 75 mOhms
  • Package: Radial, Can
  • Diameter: 0.315" (8.00mm)
  • Height Seated: 0.512" (13.00mm)
  • Lead Spacing: 0.138" (3.50mm)
  • Ripple Current (Low Frequency): 600 mA @ 120 Hz
  • Ripple Current (High Frequency): 1.2 A @ 100 kHz
  • Packaging: Bulk (1000 units)
