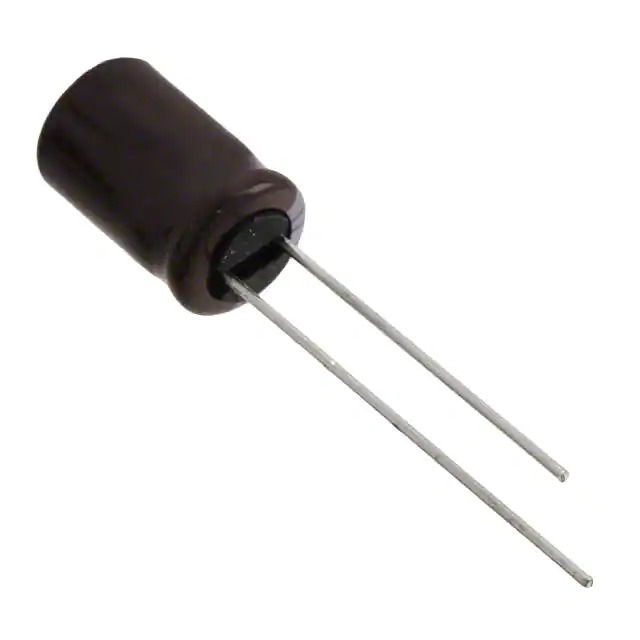

EKZE250EC3221MHB5D United Chemi-Con
Same model may have multiple batches, images only for reference.

EKZE250EC3221MHB5D

Part No EKZE250EC3221MHB5D
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 220UF 20% 25V RADIAL / 220 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KZE
Package Tape & Reel (TR)
Product Status Active
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 380 mA @ 120 Hz
Ripple Current @ High Frequency 760 mA @ 100 kHz
Impedance 72 mOhms
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358229-EKZE250EC3221MHB5D
Ultra Librarian 3D Model Ultra Librarian EKZE250EC3221MHB5D CAD Model

Description

The KZE series aluminum electrolytic capacitor, manufactured by United Chemi-Con, is a high-quality component designed for general-purpose applications. With a capacitance of 220 µF and a voltage rating of 25 V, this capacitor offers reliable performance in a compact radial, can package.

  • Capacitance: 220 µF
  • Voltage Rating: 25 V
  • Tolerance: ±20%
  • Ripple Current @ 120 Hz: 380 mA
  • Ripple Current @ 100 kHz: 760 mA
  • Lead Spacing: 0.138" (3.50mm)
  • Diameter: 0.315" (8.00mm)
  • Mounting Type: Through Hole
  • Seated Height: 0.512" (13.00mm)
  • Lifetime: 3000 hours @ 105°C
  • Application: General Purpose
  • REACH: Unaffected
