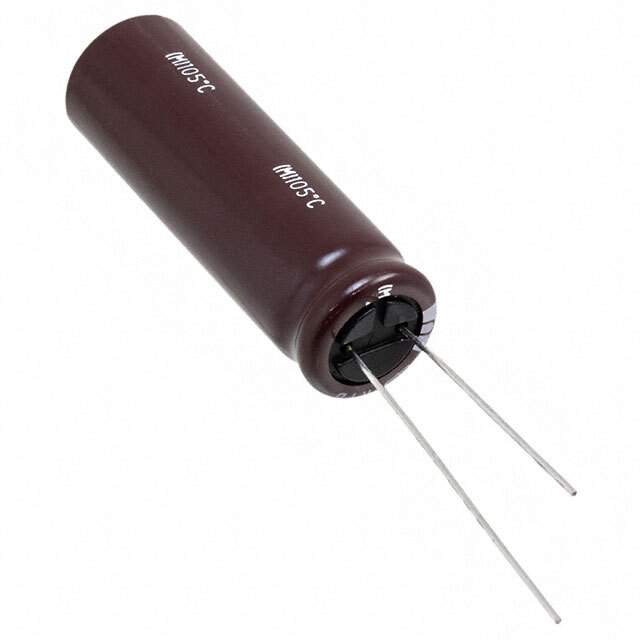

EKYB800ELL681MK40S Real Image
Same model may have multiple batches, images only for reference.

EKYB800ELL681MK40S

Part No EKYB800ELL681MK40S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 680UF 20% 80V RADIAL / 680 µF 80 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KYB
Package Bulk
Capacitance 680 µF
Tolerance ±20%
Voltage - Rated 80 V
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.47 A @ 120 Hz
Ripple Current @ High Frequency 2.45 A @ 100 kHz
Impedance 24 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 1.634" (41.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
Standard Package 500
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1339198-EKYB800ELL681MK40S
Ultra Librarian 3D Model Ultra Librarian EKYB800ELL681MK40S CAD Model

Description

The KYB series aluminum electrolytic capacitor from United Chemi-Con is a high-quality capacitor that is perfect for use in general purpose applications.

  • Capacitance: 680 µF
  • Voltage Rating: 80 V
  • Impedance: 24 mOhms
  • Lifetime: 10000 hours @ 105°C
  • Package: Bulk
  • Lead Spacing: 0.197" (5.00mm)
  • Polarization: Polarized
  • Ripple Current: 1.47 A @ 120 Hz and 2.45 A @ 100 kHz
