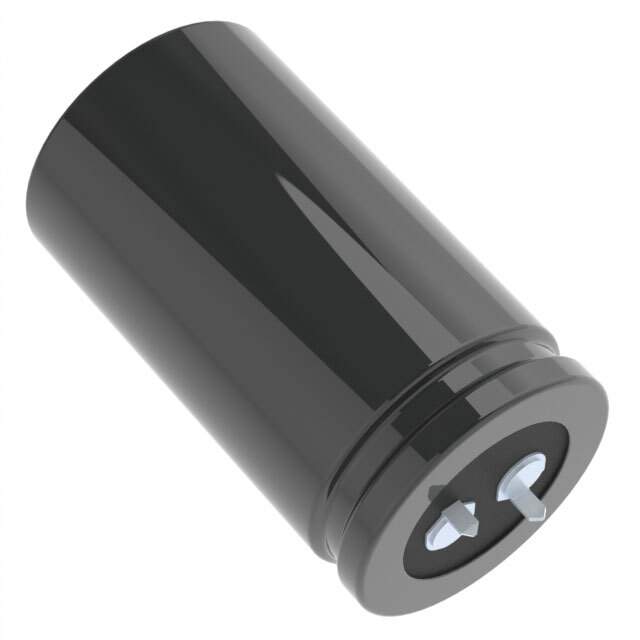

EKMS501VSN471MA60S Real Image
Same model may have multiple batches, images only for reference.

EKMS501VSN471MA60S

Part No EKMS501VSN471MA60S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 470UF 20% 500V SNAP / 470 µF 500 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KMS
Package Bulk
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 500 V
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 2.03 A @ 120 Hz
Ripple Current @ High Frequency 2.9029 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Dimension 1.378" Dia (35.00mm)
Height - Seated (Max) 2.461" (62.50mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Other Names 565-3490,EKMS501VSN471MA60S-ND
Standard Package 200
Win Source Part Number 1067626-EKMS501VSN471MA60S
Ultra Librarian 3D Model Ultra Librarian EKMS501VSN471MA60S CAD Model

Description

The KMS series aluminum electrolytic capacitor is designed for general purpose applications.

  • Package: Bulk
  • Standard Package: 200
  • Capacitance: 470 μF
  • Tolerance: ±20%
  • Voltage - Rated: 500 V
  • Lead Spacing: 0.394" (10.00mm)
  • ESR (Equivalent Series Resistance): Not applicable
  • Lifetime @ temp.: 3000 Hrs @ 105°C
  • Polarization: Polar
  • Mounting Type: Through Hole
  • Package/Case: Radial, can - snap-in
  • Dimension: 1.378" Dia (35.00mm)
  • Alternative Parts (Cross-Reference): LGU2W471MELC, SLP471M450H9P3, 381LX471M450A052, SLPX471M400E4P3, EKMM401VSN471MR50T, and ECO-S2GA471EA
  • Temperature Range - Operating: -25°C ~ 105°C
  • ECCN: EAR99
  • MSL Level: Not applicable
  • REACH Status: REACH unaffected
  • HTSUS: 8532.22.0040
  • Manufacturer: United Chemi-Con
  • Other Names: 565-3490 and EKMS501VSN471MA60S-ND
  • Ripple Current @ low frequency: 2.03 A @ 120 Hz
  • Ripple Current @ high frequency: 2.9029 A @ 50 kHz
