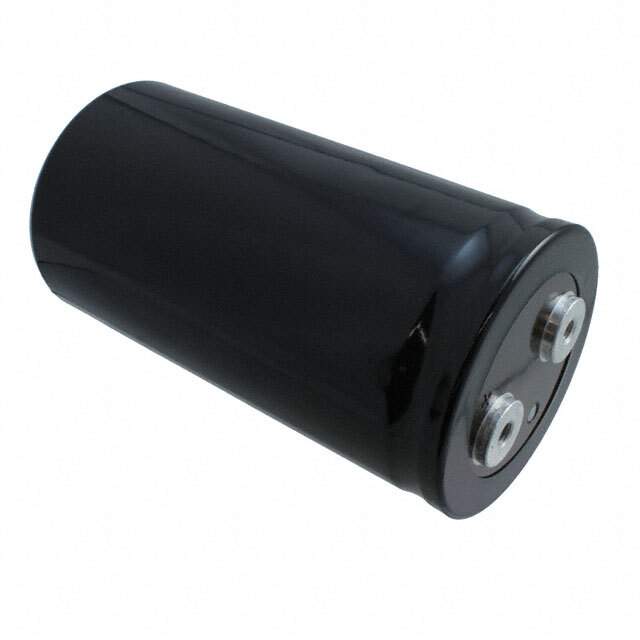

E37F501CPN562MEE3M Real Image
Same model may have multiple batches, images only for reference.

E37F501CPN562MEE3M

Part No E37F501CPN562MEE3M
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 5600UF 20% 500V SCREW / 5600 µF 500 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 20mOhm @ 120Hz 5000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series U37F
Package Bulk
Product Status Obsolete
Capacitance 5600 µF
Tolerance ±20%
Voltage - Rated 500 V
ESR (Equivalent Series Resistance) 20mOhm @ 120Hz
Lifetime @ Temp. 5000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 17.1 A @ 120 Hz
Ripple Current @ High Frequency 24.111 A @ 10 kHz
Lead Spacing 1.252" (31.80mm)
Size / Dimension 3.000" Dia (76.20mm)
Height - Seated (Max) 5.669" (144.00mm)
Mounting Type Chassis Mount
Package / Case Radial, Can - Screw Terminals
Standard Package 16
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0085
Win Source Part Number 1337984-E37F501CPN562MEE3M
Ultra Librarian 3D Model Ultra Librarian E37F501CPN562MEE3M CAD Model

Description

The United Chemi-Con U37F series aluminum electrolytic capacitor is a high-capacity, polarized capacitor designed for use in general-purpose applications.

  • Capacitance: 5600 µF
  • Voltage Rating: 500 V
  • ESR: 20mOhm @ 120Hz
  • Package: Radial, Can - Screw Terminals
  • Mounting Type: Chassis Mount
  • Diameter: 3.000" (76.20mm)
  • Height Seated: 5.669" (144.00mm)
  • Lifetime: 5000 Hrs @ 85°C
  • Temperature Range: -40°C to 85°C
  • Package Quantity: 16
