Same model may have multiple batches, images only for reference.

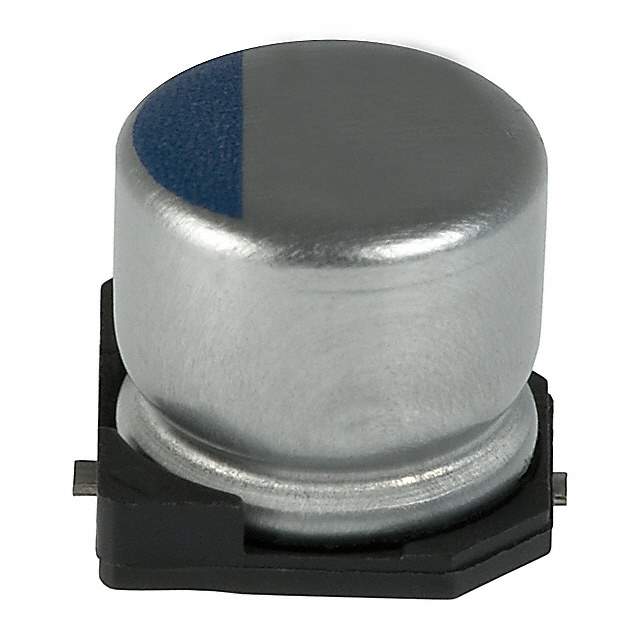

APXA160ARA390MF60G Real Image
Same model may have multiple batches, images only for reference.

APXA160ARA390MF60G

Part No APXA160ARA390MF60G
Manufacturer United Chemi-Con
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 39UF 20% 16V SMD / 39 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 37mOhm 15000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr United Chemi-Con
Series NPCAP™-PXA
Package Tape & Reel
Type Polymer
Capacitance 39 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) 37mOhm
Lifetime @ Temp. 15000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ High Frequency 2.05 A @ 100 kHz
Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.224" (5.70mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 565-3084-1,565-3084-2,PXA16VC39RMF60TP,565-3084-6,APXA160ARA390MF60S
Standard Package 1,000
Win Source Part Number 1208045-APXA160ARA390MF60G
Ultra Librarian 3D Model Ultra Librarian APXA160ARA390MF60G CAD Model

Description

United Chemi-Con's APXA160ARA390MF60G is a polymer capacitor with a capacitance of 39 µF and a voltage rating of 16V.

  • Tolerance: ±20%
  • ESR (Equivalent Series Resistance): 37mOhm
  • Package: Radial, can - SMD
  • Operating Temperature Range: -55°C to 105°C
  • Height: 0.224" (5.70mm)
  • Dimension: 0.248" Dia (6.30mm)
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS: 8532.22.0020
