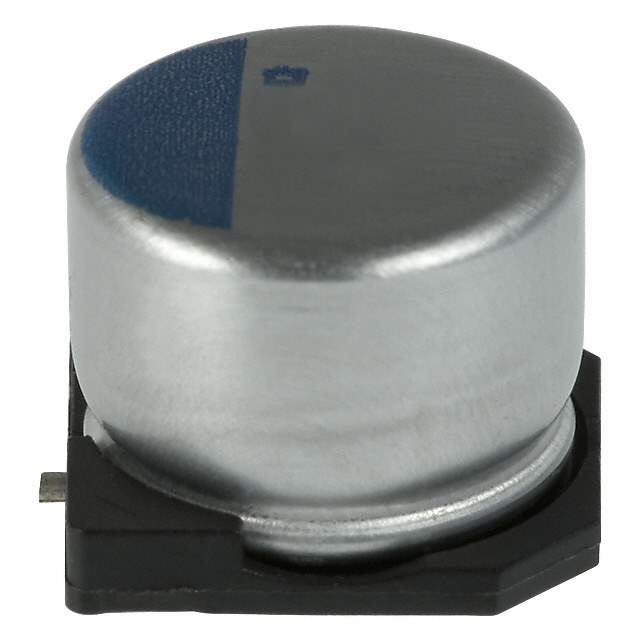

APXA160ARA220ME60G Real Image
Same model may have multiple batches, images only for reference.

APXA160ARA220ME60G

Part No APXA160ARA220ME60G
Manufacturer United Chemi-Con
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 22UF 20% 16V SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Estimated Pruduction Lead Time 15 Weeks
Features 22 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 45mOhm 15000 Hrs @ 105°C
Manufacturer United Chemi-Con
Series NPCAP™-PXA
Package Reel - TR
Operating Temperature Range -55°C ~ 105°C
Mounting Surface Mount
Package Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Quantity per package 1000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 861672-APXA160ARA220ME60G
Ultra Librarian 3D Model Ultra Librarian APXA160ARA220ME60G CAD Model

Description

The United Chemi-Con NPCAP™-PXA series aluminum-polymer capacitors are designed to provide high capacitance and low ESR in a compact, surface-mount package.

  • Capacitance: 22 μF
  • Voltage Rating: 16 V
  • Package: radial, can-style
  • Mounting: surface-mounting
  • Operating Temperature Range: -55°C to 105°C
  • ESR: 45 mΩ
  • Lifespan: 15000-hour @ 105°C
  • ECCN: EAR99
  • Package: 1000 units on a reel
  • Estimated Production Lead Time: 15 weeks
  • REACH Status: unaffected
  • HTSUS: 8532.22.0020
