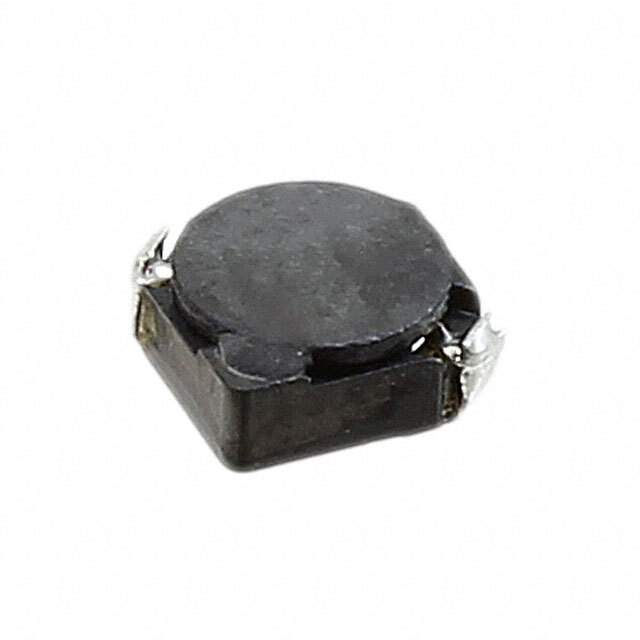

CDRH3D16/HPNP-2R2NC Real Image1 CDRH3D16/HPNP-2R2NC Real Image2
Same model may have multiple batches, images only for reference.
CDRH3D16/HPNP-2R2NC Real Image1 CDRH3D16/HPNP-2R2NC Real Image2
CDRH3D16/HPNP-2R2NC Real Image1 CDRH3D16/HPNP-2R2NC Real Image2
Same model may have multiple batches, images only for reference.

CDRH3D16/HPNP-2R2NC

Part No CDRH3D16/HPNP-2R2NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 2.2UH 2.3A 59 MOHM SMD
Datasheet
CDRH3D16/HPNP-2R2NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Status Active
Material - Core Ferrite
Inductance 2.2μH
Tolerance ±30%
Current Rating 2.3A
Current - Saturation 1.75A
DC Resistance (DCR) 59 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.071" (1.80mm)
Win Source Part Number 123704-CDRH3D16/HPNP-2R2NC
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Power Management, Industrial, Consumer Electronics, Portable Devices, Communications & Networking
Ultra Librarian 3D Model Ultra Librarian CDRH3D16/HPNP-2R2NC CAD Model

Description

CDRH3D16/HPNP-2R2NC Inductor

The CDRH3D16/HPNP-2R2NC is a fixed inductor from Sumida, renowned for its compact design and high efficiency. Designed to provide outstanding performance in electronic circuits, this inductor is suitable for a variety of applications.

  • High saturation current capability
  • Compact and low-profile design
  • High reliability and stability under varying conditions

Applications

  • DC-DC converters
  • Power supplies
  • Voltage regulator modules (VRMs)

Benefits

  • Reduced power loss
  • Enhanced energy efficiency
  • Minimized electromagnetic interference (EMI)
