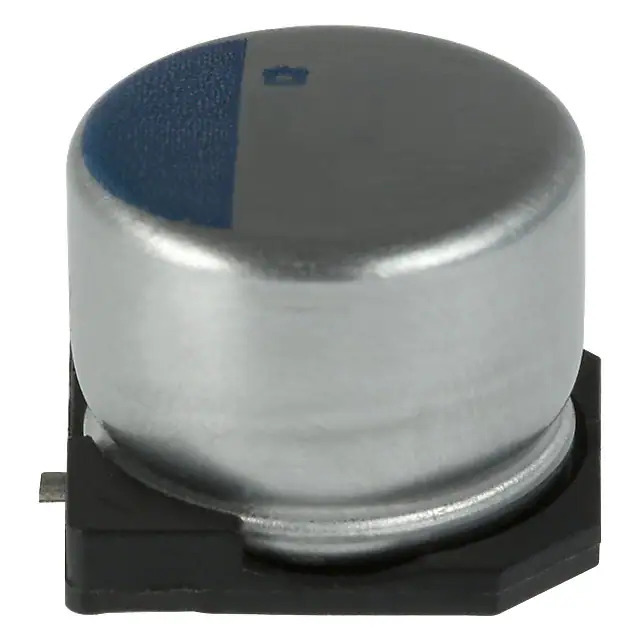

Same model may have multiple batches, images only for reference.
APXA160ARA181MJ80G United Chemi-Con
Same model may have multiple batches, images only for reference.

APXA160ARA181MJ80G

Part No APXA160ARA181MJ80G
Manufacturer United Chemi-Con
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 180UF 20% 16V SMD / 180 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 26mOhm 15000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr United Chemi-Con
Series NPCAP™-PXA
Package Tape & Reel
Product Status Active
Type Polymer
Capacitance 180 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) 26mOhm
Lifetime @ Temp. 15000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Ratings -
Applications General Purpose
Ripple Current @ High Frequency 3.43 A @ 100 kHz
Lead Spacing -
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.303" (7.70mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1359537-APXA160ARA181MJ80G
Ultra Librarian 3D Model Ultra Librarian APXA160ARA181MJ80G CAD Model

Description

The United Chemi-Con NPCAP™-PXA series capacitor is a high-quality aluminum polymer capacitor designed for general-purpose applications.

  • Capacitance: 180 µF
  • Voltage Rating: 16 V
  • Temperature Range: -55°C to 105°C
  • Package: Radial, Can - SMD
  • Mounting Type: Surface Mount
  • Ripple Current: 3.43 A @ 100 kHz
  • Lifetime: 15000 Hours @ 105°C
  • Product Status: Active
