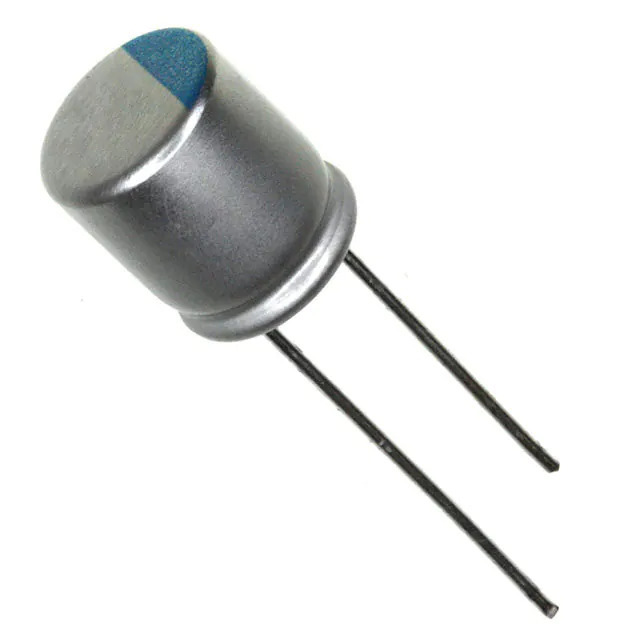

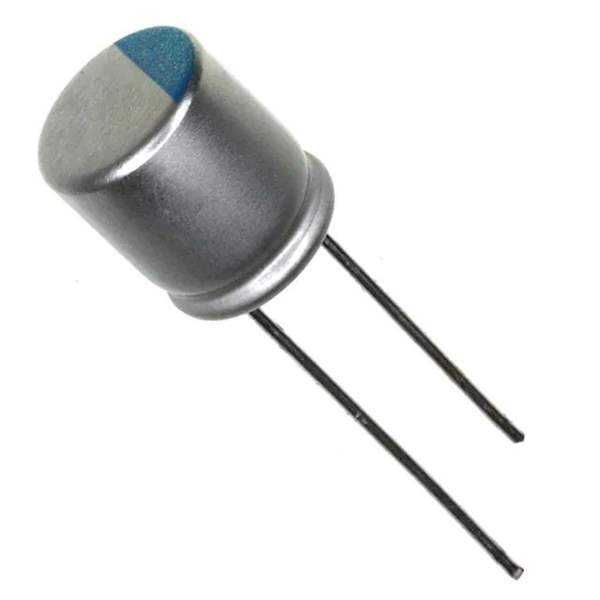

APSG250ELL331MJB5S United Chemi-Con
Same model may have multiple batches, images only for reference.

APSG250ELL331MJB5S

Part No APSG250ELL331MJB5S
Manufacturer United Chemi-Con
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 330UF 20% 25V T/H / 330 µF 25 V Aluminum - Polymer Capacitors Radial, Can 14mOhm 15000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr United Chemi-Con
Series NPCAP™-PSG
Package Bulk
Product Status Active
Type Polymer
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) 14mOhm
Lifetime @ Temp. 15000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Ratings -
Applications General Purpose
Ripple Current @ High Frequency 5 A @ 100 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1359514-APSG250ELL331MJB5S
Ultra Librarian 3D Model Ultra Librarian APSG250ELL331MJB5S CAD Model

Description

The 1359514-APSG250ELL331MJB5S is a polymer capacitor manufactured by United Chemi-Con.

  • Series: NPCAP™-PSG
  • Capacitance: 330 μF
  • Tolerance: ±20%
  • Temperature Range: -55°C to 105°C
  • Rated Voltage: 25 V
  • Equivalent Series Resistance (ESR): 14 mOhm
  • Mounting Type: Through-Hole
  • Package: Radial, Can
  • Lead Spacing: 0.197 inches (5.00 mm)
  • Diameter: 0.394 inches (10.00 mm)
  • Maximum Seated Height: 0.512 inches (13.00 mm)
  • Lifetime: 15,000 hours @ 105°C
  • REACH: Unaffected
  • ECCN: EAR99
  • Application: General-Purpose
