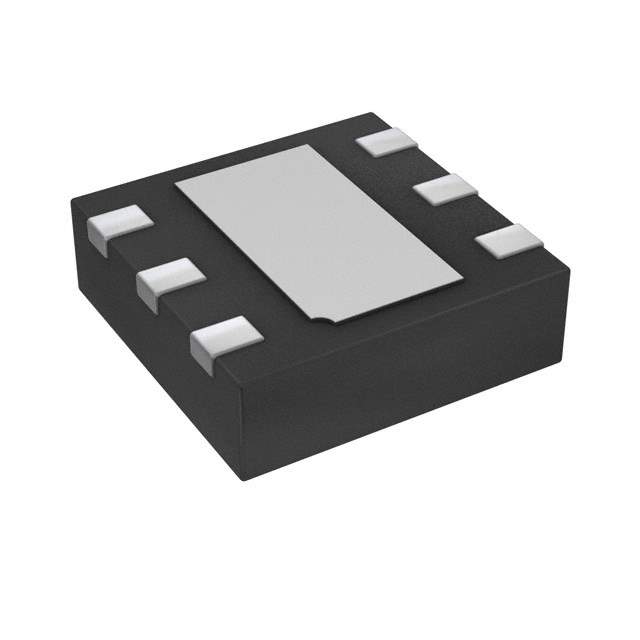

UM1770DA-00

Name: UM1770DA-00
Brand: Union Semiconductor
SKU: 1127708
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UM1770DA-00
Manufacturer	Union Semiconductor
Catalog	PMIC - Voltage Regulators - Linear
Description	IC REG LINEAR POS ADJ 500MA 6DFN / Linear Voltage Regulator IC Positive Adjustable 1 Output 500mA 6-DFN (2x2)
Datasheet	UM1770DA-00 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs)>PMIC - Voltage Regulators - Linear
Mfr	Union Semiconductor (HK) Limited
Package	Tape & Reel (TR)
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	6V
Voltage - Output (Min/Fixed)	1V
Voltage - Output (Max)	5V
Voltage Dropout (Max)	0.32V @ 500mA
Current - Output	500mA
Current - Quiescent (Iq)	140 µA
Current - Supply (Max)	300 µA
PSRR	65dB ~ 45dB (100Hz ~ 10kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Short Circuit
Temperature Range - Operating	-40°C ~ 125°C (TJ)
Mounting	SMD (SMT)
Package / Case	6-WDFN Exposed Pad
Supplier Device Package	6-DFN (2x2)
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
HTSUS	8542.39.0001
Other Names	3351-UM1770DA-00TR
Standard Package	3,000
Win Source Part Number	1127708-UM1770DA-00
Ultra Librarian 3D Model	Ultra Librarian UM1770DA-00 CAD Model

Description

The Union Semiconductor UM1770DA-00 is an adjustable voltage regulator designed for use in a variety of applications.

Output Current: 500mA
Voltage Output Range: 1V to 5V
Maximum Input Voltage: 6V
Maximum Dropout Voltage: 0.32V @ 500mA
Package: 6-WDFN exposed pad
Mounting: SMD (SMT)
Operating Temperature: -40°C to 125°C (TJ)
PSRR: 65dB ~ 45dB (100Hz ~ 10kHz)
Protection: Over current, Over temperature, Short circuit
REACH: Unaffected
MSL Level: 3 (168 hours)
