Same model may have multiple batches, images only for reference.

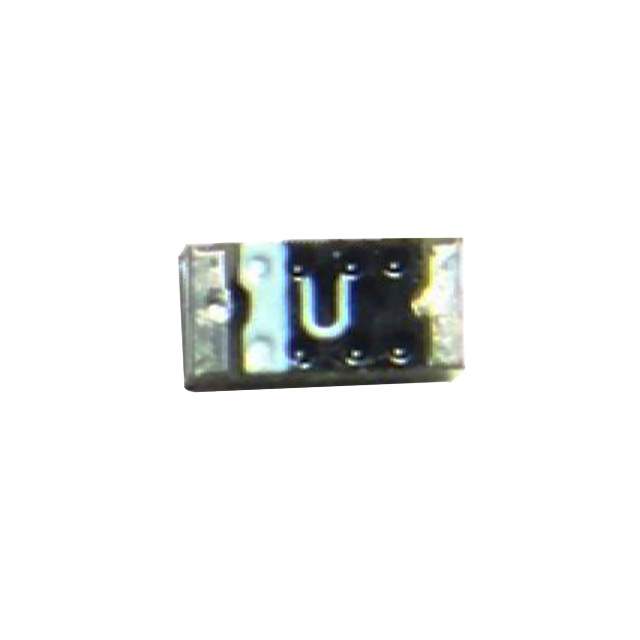

H2U36D1K1B0300 Real Image
Same model may have multiple batches, images only for reference.

H2U36D1K1B0300

Part No H2U36D1K1B0300
Manufacturer Unictron Technologies Corporation
Catalog RF Antennas
Description WIFI/BT 2400-2500 MHZ MONOPOLE C / 2.45GHz 802.11b/g/n, Bluetooth, ISM, Wi-Fi, Zigbee™ Chip RF Antenna 2.4GHz ~ 2.5GHz 1.9dBi Solder Surface Mount
Datasheet
H2U36D1K1B0300 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Antennas
Mfr Unictron Technologies Corporation
Package Tape & Reel
RF Family/Standard 802.15.4, Bluetooth, General ISM, WiFi
Frequency Group UHF (2GHz ~ 3GHz)
Frequency (Center/Band) 2.45GHz
Frequency Range 2.4GHz ~ 2.5GHz
Antenna Type Chip
Number of Bands 1
VSWR 2
Gain 1.9dBi
Power - Max 2 W
Termination Solder
Mounting Type Surface Mount
Height (Max) 0.063" (1.60mm)
Applications 802.11b/g/n, Bluetooth, ISM, Wi-Fi, Zigbee™
Base Product Number H2U36D1
Standard Package 2,000
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8529.10.9100
Win Source Part Number 1337843-H2U36D1K1B0300
Ultra Librarian 3D Model Ultra Librarian H2U36D1K1B0300 CAD Model

Description

The H2U36D1K1B0300 is an RF antenna manufactured by Unictron Technologies Corporation.

  • Application: 802.11b/g/n, Bluetooth, ISM, Wi-Fi, and Zigbee
  • Frequency Range: 2.4GHz ~ 2.5GHz
  • Gain: 1.9dBi
  • VSWR: 2
  • Antenna Type: Chip
  • Standard Package: 2,000
  • Mounting Type: Surface Mount
