SMA-ER-PC TYCLON – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

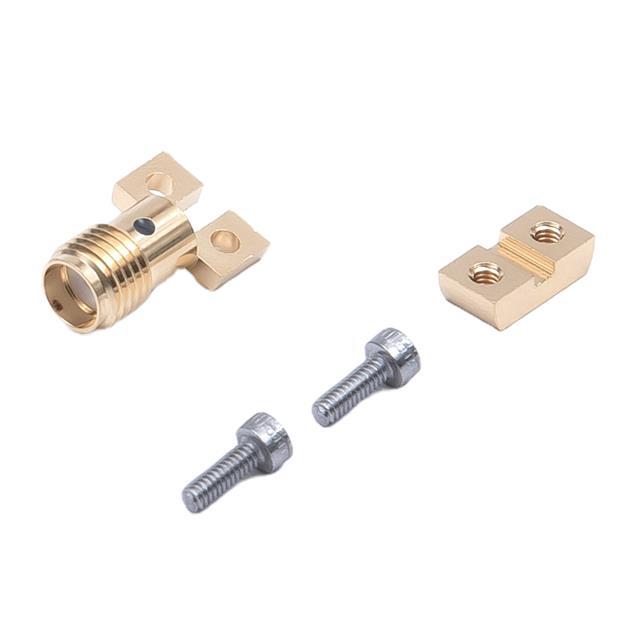

SMA-ER-PC

Part No SMA-ER-PC
Manufacturer TYCLON
Catalog Coaxial Connectors (RF) - Assemblies
Description SMA Connector Jack, Female Socket 50 Ohms Board Edge, End Launch Compression
Datasheet
SMA-ER-PC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Retail Package
Product Status Active
Connector Style SMA
Connector Type Jack, Female Socket
Contact Termination Compression
Shield Termination Screw
Impedance 50 Ohms
Mounting Type Board Edge, End Launch
Fastening Type Threaded
Frequency - Max 18GHz
Number of Ports 1
Housing Color Gold
Center Contact Material Beryllium Copper
Ultra Librarian 3D Model Ultra Librarian SMA-ER-PC CAD Model
