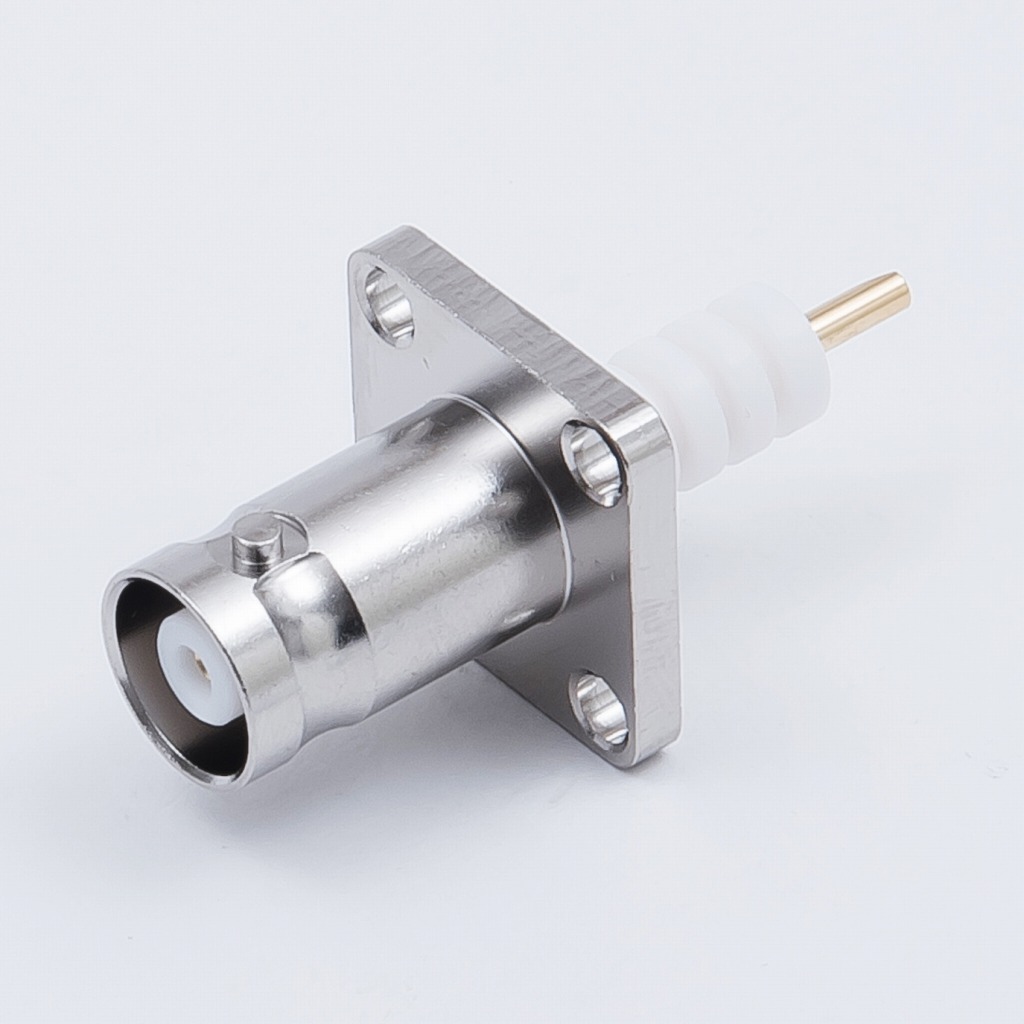

BNC-HV-R

Part No BNC-HV-R
Manufacturer TYCLON
Catalog Coaxial Connectors (RF) - Assemblies
Description an MHV Receptacle. This connector is suitable for various high-frequency applications. It features a impedance Mismatch, and has a rated voltage of AC 1600V, ensures a high insulation resistance (1000MΩ(Min.) at DC 500V), a low contact resistance (3 mΩ(Max.). The contact is made of Phosphor Bronze/Gold Plating, while the body is Brass/Nickel Plating. Terminal Shape is solder.
Datasheet
BNC-HV-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Retail Package
Product Status Active
Connector Style BNC
Connector Type Jack, Female Socket
Contact Termination Solder Cup
Shield Termination Solder
Mounting Type Panel Mount
Mounting Feature Flange
Fastening Type Bayonet Lock
Number of Ports 1
Features Extended Insulation
Housing Color Silver
Center Contact Material Phosphor Bronze
Ultra Librarian 3D Model Ultra Librarian BNC-HV-R CAD Model
