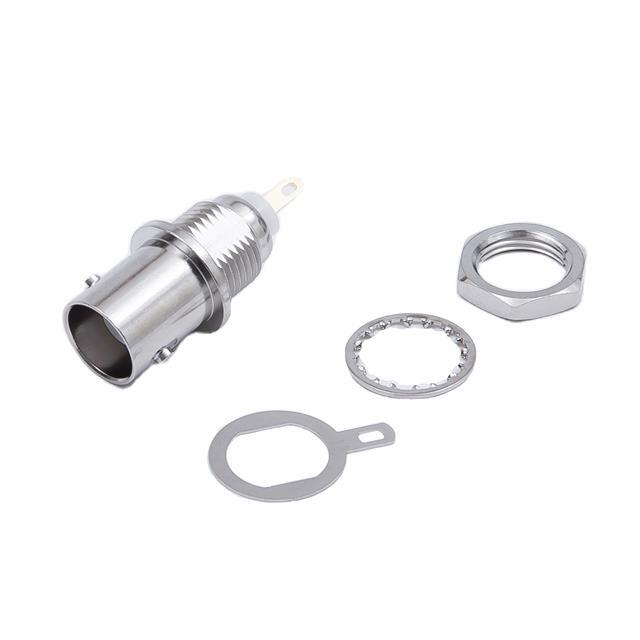

BNC-BR Diecast

Part No BNC-BR Diecast
Manufacturer TYCLON
Catalog Coaxial Connectors (RF) - Assemblies
Description BNC-BR Diecast is an BNC Receptacle. This connector is suitable for various high-frequency applications. It features a impedance 50Ω, operates up to 1000MHz, and has a rated voltage of AC 500V, ensures a high insulation resistance (1000MΩ(Min.) at DC 500V), a low contact resistance (3 mΩ(Max.). Withstanding temperatures from -40 to +85°C. The contact is made of Phosphor Bronze/Gold Plating, while the body is Zinc Die-Cast/Nickel Plating. Terminal Shape is solder
Datasheet
BNC-BR Diecast Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Retail Package
Product Status Active
Connector Style BNC
Connector Type Plug, Male Pin
Contact Termination Solder Eyelet
Shield Termination Solder
Impedance 50 Ohms
Mounting Type Panel Mount
Mounting Feature Bulkhead - Rear Side Nut
Fastening Type Bayonet Lock
Frequency - Max 1GHz
Number of Ports 1
Housing Color Silver
Center Contact Material Phosphor Bronze
Ultra Librarian 3D Model Ultra Librarian BNC-BR Diecast CAD Model
