Same model may have multiple batches, images only for reference.

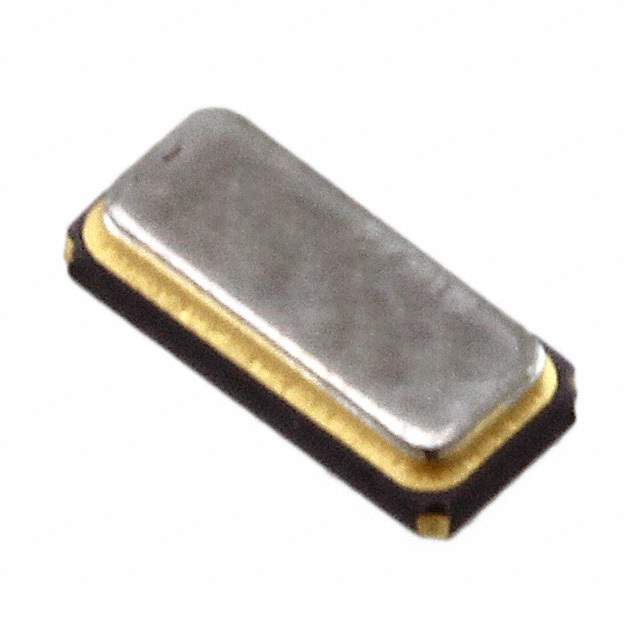

AH-32.768KDZC-T Real Image
Same model may have multiple batches, images only for reference.

AH-32.768KDZC-T

Part No AH-32.768KDZC-T
Manufacturer TXC CORPORATION
Catalog Crystals
Description CRYSTAL 32.7680KHZ 9PF SMD / 32.768 kHz ±20ppm Crystal 9pF 70 kOhms 2-SMD, No Lead
Datasheet
AH-32.768KDZC-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr TXC CORPORATION
Series AH
Package Tape & Reel
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Frequency Tolerance ±20ppm
Load Capacitance 9pF
ESR (Equivalent Series Resistance) 70 kOhms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Ratings AEC-Q200
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Size / Dimension 0.126" L x 0.059" W (3.20mm x 1.50mm)
Height - Seated (Max) 0.033" (0.85mm)
Standard Package 3,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0010
Win Source Part Number 1339513-AH-32.768KDZC-T
Ultra Librarian 3D Model Ultra Librarian AH-32.768KDZC-T CAD Model

Description

The 1339513-AH-32.768KDZC-T is a kHz crystal (tuning fork) from the AH series of TXC Corporation.

  • Frequency: 32.768 kHz
  • Frequency Tolerance: ±20ppm
  • Package: 2-SMD, No Lead
  • Height: 0.033" (0.85mm)
  • ESR: 70 kOhms
  • AEC-Q200: yes
  • Operating Mode: fundamental
  • Packaging: tape and reel
  • RoHS Compliant: yes
