Same model may have multiple batches, images only for reference.

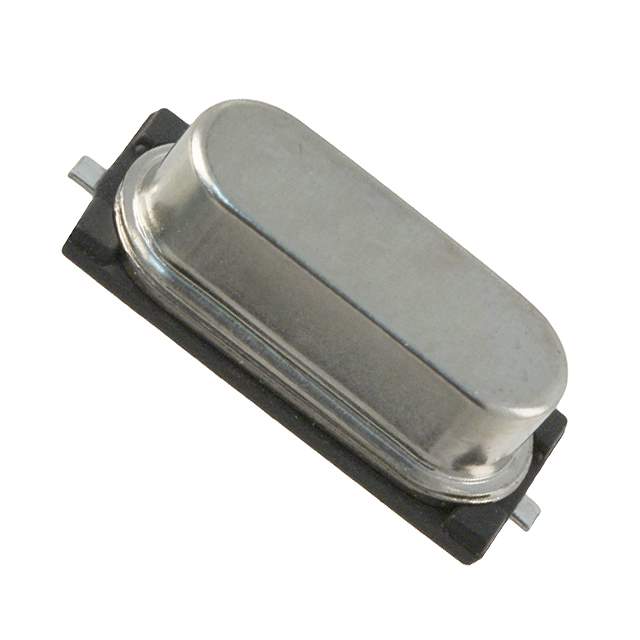

9C-6.000MAAJ-T Real Image
Same model may have multiple batches, images only for reference.

9C-6.000MAAJ-T

Part No 9C-6.000MAAJ-T
Manufacturer TXC CORPORATION
Catalog Crystals
Description CRYSTAL 6.0000MHZ 18PF SMD / 6 MHz ±30ppm Crystal 18pF 80 Ohms HC-49/US
Datasheet
9C-6.000MAAJ-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr TXC CORPORATION
Series 9C
Package Tape & Reel
Product Status Obsolete
Type MHz Crystal
Frequency 6 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 80 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting Type Surface Mount
Package / Case HC-49/US
Size / Dimension 0.449" L x 0.189" W (11.40mm x 4.80mm)
Height - Seated (Max) 0.161" (4.10mm)
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 1340388-9C-6.000MAAJ-T
Ultra Librarian 3D Model Ultra Librarian 9C-6.000MAAJ-T CAD Model

Description

The TXC CORPORATION 1340388-9C-6.000MAAJ-T MHz crystal is a surface mount component that measures 0.449 inches in length and 0.189 inches in width.

  • Frequency: 6 MHz
  • Load Capacitance: 18pF
  • Operating Mode: Fundamental
  • Frequency Stability: ±30ppm
  • Frequency Tolerance: ±30ppm
  • ESR: 80 Ohms
  • Operating Temperature: -20°C to 70°C
  • Packaging: Tape and Reel
  • Standard Package: 1,000
  • Package/Case: HC-49/US
  • Height - Seated (Max): 0.161 inches
  • Status: Obsolete
  • ECCN: EAR99
