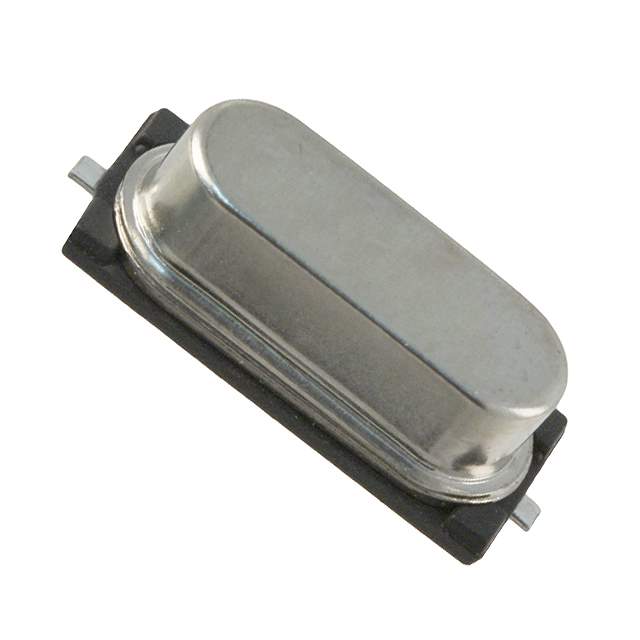

9C-25.000MAAK-T Real Image
Same model may have multiple batches, images only for reference.

9C-25.000MAAK-T

Part No 9C-25.000MAAK-T
Manufacturer TXC CORPORATION
Catalog Crystals
Description CRYSTAL 25.0000MHZ 20PF SMD / 25 MHz ±30ppm Crystal 20pF 30 Ohms HC-49/US
Datasheet
9C-25.000MAAK-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr TXC CORPORATION
Series 9C
Package Tape & Reel
Product Status Obsolete
Type MHz Crystal
Frequency 25 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 30 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting SMD (SMT)
Package / Case HC-49/US
Dimension 0.449" L x 0.189" W (11.40mm x 4.80mm)
Height - Seated (Max) 0.161" (4.10mm)
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0060
Other Names 9C25000MAAKT,887-1517-2,887-1517-1,887-1517-6
Standard Package 1,000
Win Source Part Number 1152880-9C-25.000MAAK-T
Ultra Librarian 3D Model Ultra Librarian 9C-25.000MAAK-T CAD Model

Description

The TXC CORPORATION 9C-25.000MAAK-T is a crystal oscillator that is designed to meet the needs of electronic component manufacturers and hobbyists alike.

  • Popularity: Low
  • Status: Obsolete
  • Frequency: 25 MHz
  • Frequency Stability: ±30ppm
