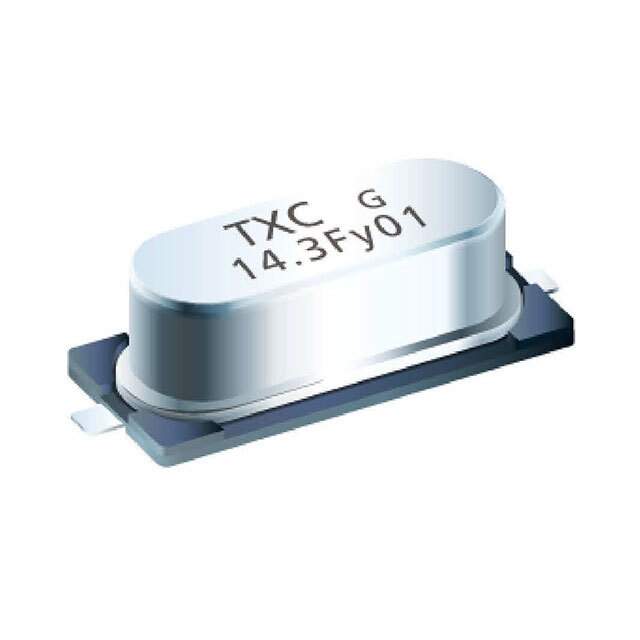

9C-19.660MBBK-T Real Image
Same model may have multiple batches, images only for reference.

9C-19.660MBBK-T

Part No 9C-19.660MBBK-T
Manufacturer TXC CORPORATION
Catalog Crystals
Description CRYSTAL 19.6600MHZ 20PF SMD
Datasheet
9C-19.660MBBK-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer TXC CORPORATION
Series 9C
Packaging Reel package
Type MHz Crystal
Frequency 19.66MHz
Frequency Stability ±50ppm
Frequency Tolerance ±50ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 30 Ohm
Operating Mode Fundamental
Operating Temperature Range -20°C ~ 70°C
Mounting SMD
Package HC-49S
Dimension 0.449" L x 0.189" W (11.40mm x 4.80mm)
Height - Seated (Maximum) 0.161" (4.10mm)
Win Source Part Number 760724-9C-19.660MBBK-T
Popularity Medium
Supply and Demand Status Limited
Introduction Date August 27, 2008
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian 9C-19.660MBBK-T CAD Model

Description

The TXC CORPORATION 9C 19.66MHz crystal is a high-quality component with a medium popularity.

  • Frequency: 19.66MHz
