Same model may have multiple batches, images only for reference.

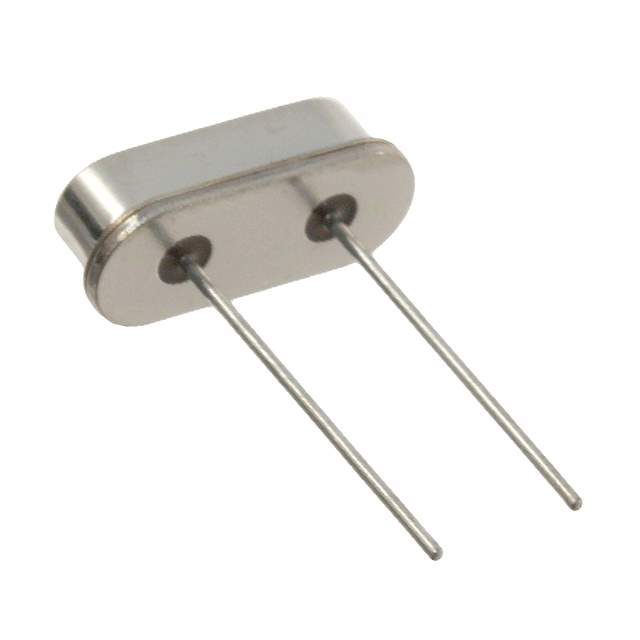

9B-9.8304MAAJ-B Real Image
Same model may have multiple batches, images only for reference.

9B-9.8304MAAJ-B

Part No 9B-9.8304MAAJ-B
Manufacturer TXC CORPORATION
Catalog Crystals
Description CRYSTAL 9.8304MHZ 18PF T/H
Datasheet
9B-9.8304MAAJ-B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer TXC CORPORATION
Packaging Bulk
Status Active
Type MHz Crystal
Frequency 9.8304MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR 80 Ohm
Operating Mode Fundamental
Temperature Range - Operating -20°C to 70°C
Mounting Through Hole
Dimension 0.453" L x 0.197" W (11.50mm x 5.00mm)
Height - Seated (Max) 0.145" (3.68mm)
Win Source Part Number 1021919-9B-9.8304MAAJ-B
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 9B-9.8304MAAJ-B CAD Model

Description

The 9.8304MHz crystal from TXC CORPORATION is a through-hole type crystal that comes in a bulk package.

  • Frequency Stability: ±30ppm
  • Load Capacitance: 18pF
  • Mode: Fundamental
  • Height: 0.145" (3.68mm)
  • Dimension: 0.453" L x 0.197" W (11.50mm x 5.00mm)
  • Temperature Range: -20°C to 70°C
