Same model may have multiple batches, images only for reference.

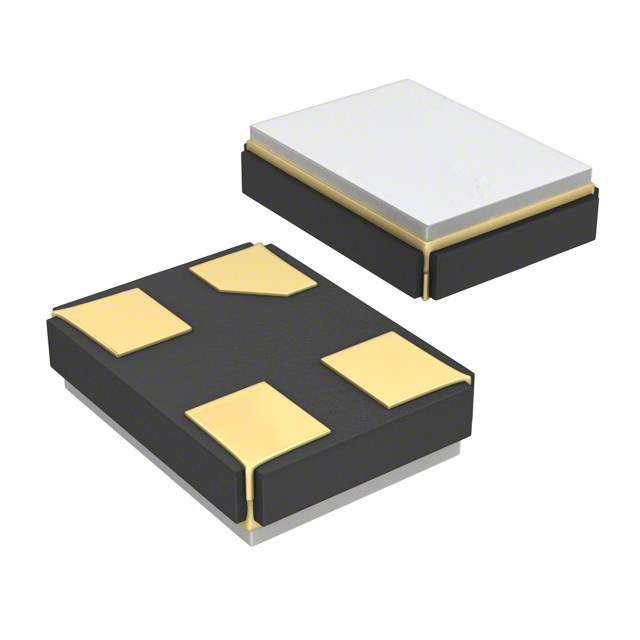

8Z38400027 Real Image
Same model may have multiple batches, images only for reference.

8Z38400027

Part No 8Z38400027
Manufacturer TXC CORPORATION
Catalog Oscillators
Description CRYSTAL 38.4000MHZ 10PF SMD / 38.4 MHz ±10ppm Crystal 10pF 60 Ohms 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Manufacturer TXC CORPORATION
Packaging Reel - TR
Type MHz Crystal
Frequency 38.4 MHz
Frequency Stability ±10ppm
Frequency Tolerance ±10ppm
Load Capacitance 10pF
ESR (Equivalent Series Resistance) 60 Ohms
Operating Mode Fundamental
Temperature Range - Operating -30°C ~ 85°C
Mounting Surface Mount
Case / Package 4-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.022" (0.55mm)
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Standard Package 3,000
Win Source Part Number 1328357-8Z38400027
Ultra Librarian 3D Model Ultra Librarian 8Z38400027 CAD Model

Description

The 8Z38400027 from TXC Corporation is a MHz Crystal used in various electronic devices.

  • Frequency: 38.4 MHz
  • Frequency Tolerance: ±10ppm
  • Size: 0.098” L x 0.079” W (2.50mm x 2.00mm)
  • Mounting Type: Surface Mount
  • RoHS Compliant: Yes
  • Temperature Range: -30°C to 85°C
