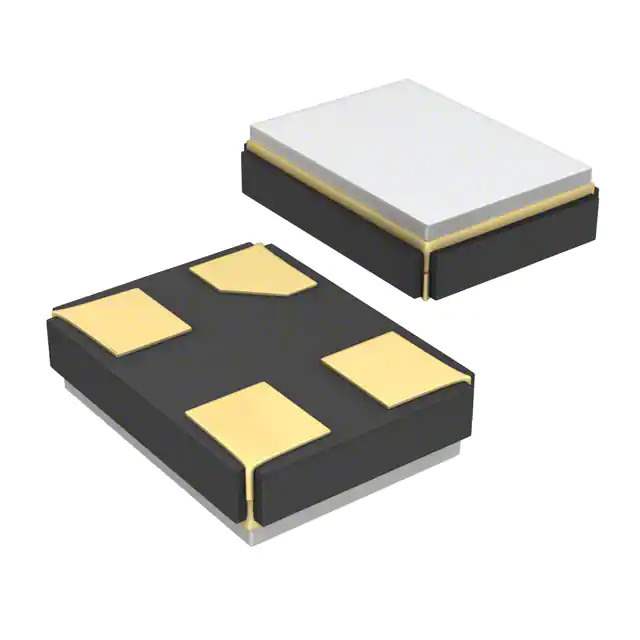

8Z19220001 Real Image
Same model may have multiple batches, images only for reference.

8Z19220001

Part No 8Z19220001
Manufacturer TXC CORPORATION
Catalog Oscillators
Description CRYSTAL 19.2000MHZ 12PF SMD / 19.2 MHz ±30ppm Crystal 12pF 100 Ohms 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr TXC CORPORATION
Series 8Z
Package Tape & Reel
Product Status Active
Type MHz Crystal
Frequency 19.2 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 12pF
ESR (Equivalent Series Resistance) 100 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.022" (0.55mm)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 845930-8Z19220001
Ultra Librarian 3D Model Ultra Librarian 8Z19220001 CAD Model

Description

The 845930-8Z19220001 is a 19.2 MHz crystal from the 8Z series by TXC Corporation.

  • Frequency: 19.2 MHz
  • Mounting Type: Surface Mount
  • Size: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Seated Height: 0.022" (0.55mm)
  • Packaging: Tape & Reel
  • Standard Package: 3,000 pieces
  • Operating Temperature: -20°C to 70°C
  • Frequency Stability: ±30ppm
  • Load Capacitance: 12pF
  • Mode: Fundamental
