Same model may have multiple batches, images only for reference.

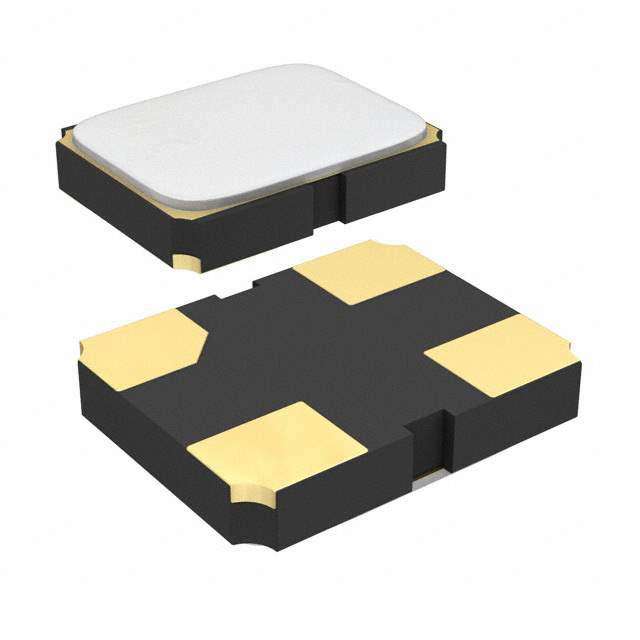

8Y48090002 Real Image
Same model may have multiple batches, images only for reference.

8Y48090002

Part No 8Y48090002
Manufacturer TXC CORPORATION
Catalog Crystals
Description CRYSTAL 48MHZ 8.8PF SMD
Datasheet
8Y48090002 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer TXC CORPORATION
Series 8Y
Packaging Reel package
Type MHz Crystal
Frequency 48MHz
Frequency Stability ±10ppm
Frequency Tolerance -6ppm, +8ppm
Load Capacitance 8.8pF
Operating Temperature Range -30°C ~ 85°C
Mounting SMD
Package 4-SMD, No Lead
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Maximum) 0.022" (0.55mm)
Win Source Part Number 766441-8Y48090002
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 8Y48090002 CAD Model

Description

The TXC CORPORATION 8Y series MHz Crystal is a high-quality electronic component that is designed to deliver reliable performance in a wide range of applications.

  • Frequency: 48MHz
  • Load Capacitance: 8.8pF
  • Operating Temperature Range: -30°C to 85°C
  • Frequency Tolerance: -6ppm to +8ppm
  • Package: 4-SMD, no-lead
  • Mounting Type: SMD
  • Height (Seated): 0.022" (0.55mm)
  • Dimensions: 0.079" L x 0.063" W (2.00mm x 1.60mm)
  • Popularity: Medium
  • Supply and Demand: Limited
