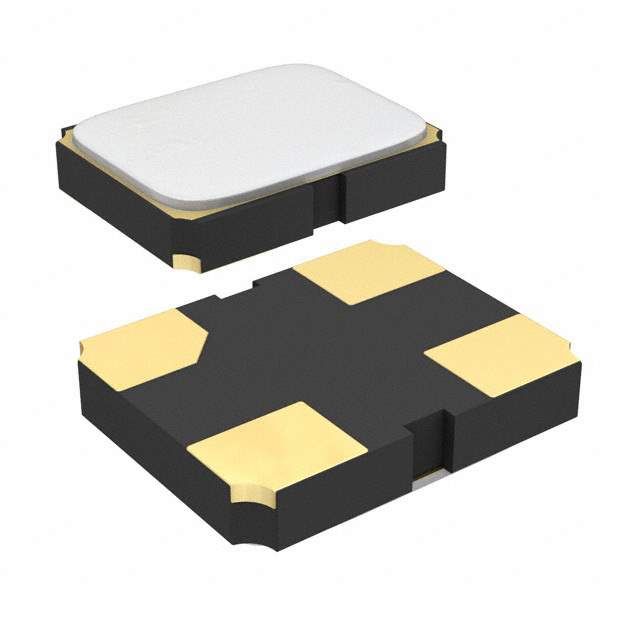

8Y-25.000MAAJ-T Real Image
Same model may have multiple batches, images only for reference.

8Y-25.000MAAJ-T

Part No 8Y-25.000MAAJ-T
Manufacturer TXC CORPORATION
Catalog Crystals
Description CRYSTAL 25.0000MHZ 18PF SMD / 25 MHz ±30ppm Crystal 18pF 100 Ohms 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr TXC CORPORATION
Series 8Y
Package Tape & Reel
Type MHz Crystal
Frequency 25 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 100 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.022" (0.55mm)
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 1337176-8Y-25.000MAAJ-T
Ultra Librarian 3D Model Ultra Librarian 8Y-25.000MAAJ-T CAD Model

Description

The TXC CORPORATION 1337176-8Y-25.000MAAJ-T is a 25 MHz crystal that comes in a 4-SMD, no lead package.

  • Packaging: Tape & Reel
  • Standard Package: 3,000
  • Size/Dimension: 0.079" L x 0.063" W (2.00mm x 1.60mm)
  • Height-Seated (Max): 0.022" (0.55mm)
  • ESR (Equivalent Series Resistance): 100 Ohms
  • Frequency Stability: ±30ppm
  • Tolerance: ±30ppm
  • Load Capacitance: 18pF
  • Operating Mode: Fundamental
  • Operating Temperature: -20°C ~ 70°C
  • MSL: 1 (unlimited)
  • REACH: Unaffected
  • HTSUS: 8541.60.0060
