Same model may have multiple batches, images only for reference.

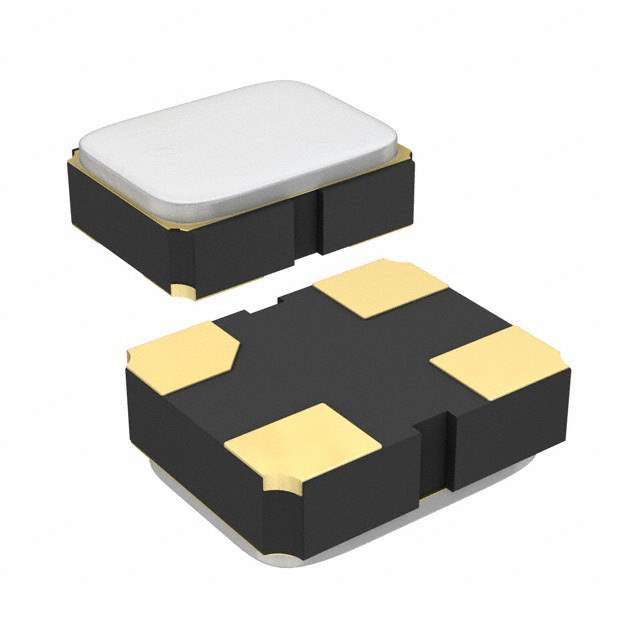

8WE-20.000MDM-T Real Image
Same model may have multiple batches, images only for reference.

8WE-20.000MDM-T

Part No 8WE-20.000MDM-T
Manufacturer TXC CORPORATION
Catalog Oscillators
Description XTAL OSC XO 20.000MHZ CMOS SMD / 20 MHz XO (Standard) CMOS (Low EMI) Oscillator 1.8V Enable/Disable 4-SMD, No Lead
Datasheet
8WE-20.000MDM-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr TXC CORPORATION
Series 8WE
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 20 MHz
Function Enable/Disable
Output CMOS (Low EMI)
Voltage - Supply 1.8V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 125°C
Current - Supply (Max) 10mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.035" (0.90mm)
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1348690-8WE-20.000MDM-T
Ultra Librarian 3D Model Ultra Librarian 8WE-20.000MDM-T CAD Model

Description

The 1348690-8WE-20.000MDM-T is a surface mount XO (Standard) oscillator belonging to the 8WE series.

  • Type: XO (Standard)
  • Series: 8WE
  • Frequency: 20 MHz
  • Frequency Stability: ±50ppm
  • Output: CMOS (Low EMI)
  • Voltage - Supply: 1.8V
  • Packaging: Tape & Reel (TR)
  • Size / Dimension: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Height - Seated (Max): 0.035" (0.90mm)
  • Standard Package: 3,000
  • Operating Temperature: -40°C to 125°C
  • ECCN: EAR99
  • REACH Status: REACH Unaffected
