Same model may have multiple batches, images only for reference.

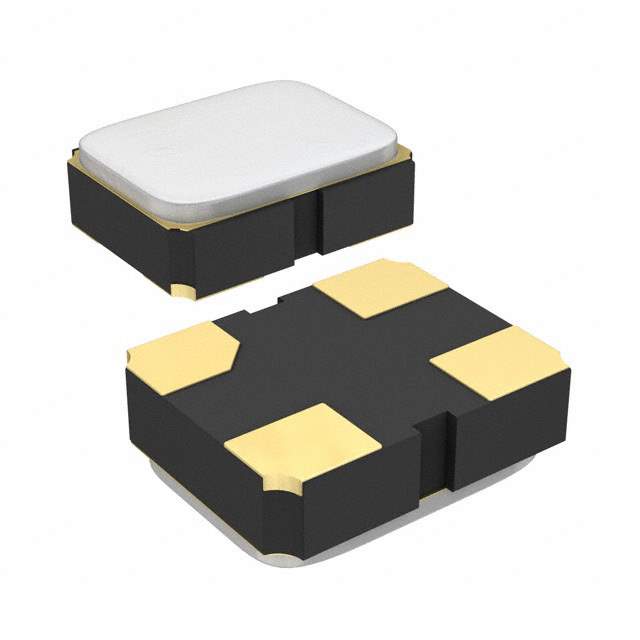

8NE-20.000MDM-T Real Image
Same model may have multiple batches, images only for reference.

8NE-20.000MDM-T

Part No 8NE-20.000MDM-T
Manufacturer TXC CORPORATION
Catalog Oscillators
Description XTAL OSC XO 20.000MHZ CMOS SMD / 20 MHz XO (Standard) CMOS (Low EMI) Oscillator 1.8V Enable/Disable 4-SMD, No Lead
Datasheet
8NE-20.000MDM-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr TXC CORPORATION
Series 8NE
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 20 MHz
Function Enable/Disable
Output CMOS (Low EMI)
Voltage - Supply 1.8V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 125°C
Current - Supply (Max) 10mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.032" (0.81mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Other Names 887-8NE-20.000MDM-TTR,887-8NE-20.000MDM-TCT,887-8NE-20.000MDM-TDKR
Standard Package 3,000
Win Source Part Number 1127983-8NE-20.000MDM-T
Ultra Librarian 3D Model Ultra Librarian 8NE-20.000MDM-T CAD Model

Description

The 8NE series XO (Standard) oscillator from TXC CORPORATION has a surface-mount package of 4-SMD, No Lead.

  • Frequency: 20 MHz
  • Frequency stability: ±50ppm
  • Voltage supply: 1.8V
  • Height: 0.032" (0.81mm)
  • Dimension: 0.079" L x 0.063" W (2.00mm x 1.60mm)
  • Operating temperature range: -40°C to 125°C
  • Package: tape and reel package of 3000
  • ECCN: EAR99
  • Absolute pull range (APR): -.39.0001
