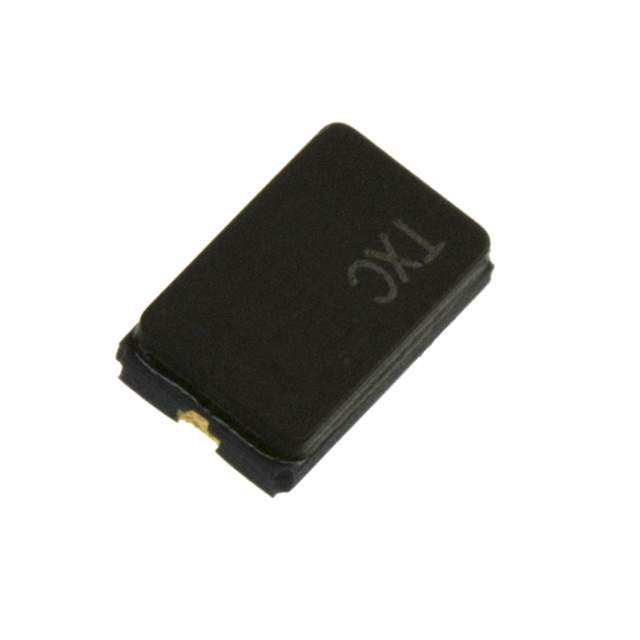

7A25070003 Real Image
Same model may have multiple batches, images only for reference.

7A25070003

Part No 7A25070003
Manufacturer TXC CORPORATION
Catalog Crystals
Description CRYSTAL 25.0000MHZ 18PF SMD / 25 MHz ±30ppm Crystal 18pF 50 Ohms 2-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr TXC CORPORATION
Series 7A
Package Tape & Reel (TR)
Product Status Obsolete
Type MHz Crystal
Frequency 25 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 50 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.053" (1.35mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Standard Package 1,000
Win Source Part Number 1013404-7A25070003
Ultra Librarian 3D Model Ultra Librarian 7A25070003 CAD Model

Description

The TXC CORPORATION 7A25070003 is a MHz crystal oscillator with a frequency of 25 MHz.

  • Frequency: 25 MHz
  • ESR: 50 Ohms
  • Frequency Stability: ±30ppm
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: 18pF
  • Operating Mode: Fundamental
  • Packaging: Tape & Reel (TR)
  • Package/Case: 2-SMD, no lead
  • Seated Height: 0.053" (1.35mm)
  • Temperature Range: -20°C to 70°C
  • Dimension: 0.197" L x 0.126" W (5.00mm x 3.20mm)
  • ECCN: EAR99
  • HTSUS: 8541.60.0060
