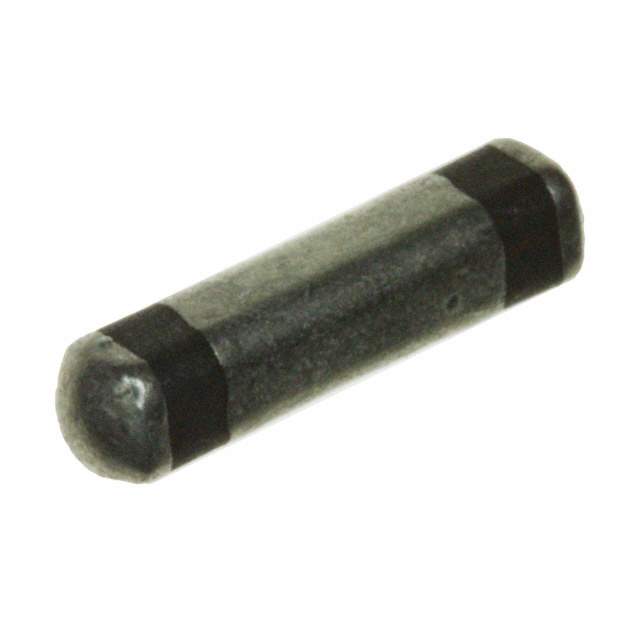

4701-001MLF Real Image
Same model may have multiple batches, images only for reference.

4701-001MLF

Part No 4701-001MLF
Manufacturer Tusonix a Subsidiary of CTS Electronic Components
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(PI) 0.1UH/8200PF SMD / LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel L = 0.1μH, C = 8200pF 10 A Pill, Square
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - EMI/RFI Filters (LC, RC Networks)
Mfr Tusonix a Subsidiary of CTS Electronic Components
Series 4700
Package Tape & Reel
Product Status Active
Type Low Pass
Filter Order 3rd
Technology LC (Pi)
Number of Channels 1
Attenuation Value 65dB @ 100MHz
Current 10 A
Values L = 0.1µH, C = 8200pF
ESD Protection No
Temperature Range - Operating -55°C ~ 125°C
Applications General Purpose
Voltage - Rated 100V
Mounting Type Surface Mount
Package / Case Pill, Square
Size / Dimension 0.394" L x 0.090" W (10.00mm x 2.29mm)
Height 0.095" (2.41mm)
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 849281-4701-001MLF
Ultra Librarian 3D Model Ultra Librarian 4701-001MLF CAD Model

Description

The 849281-4701-001MLF is a low pass EMI/RFI filter designed for general-purpose applications.

  • Size: 0.394" L x 0.090" W (10.00mm x 2.29mm)
  • Mounting: Surface Mount
  • Voltage Rating: 100V
  • Current Rating: 10A
  • Attenuation: 65dB @ 100MHz
  • Order: 3rd
  • Center/Cutoff Frequency: Customizable
  • Manufacturer: Tusonix (CTS Electronic Components)
  • Package: Tape and Reel
  • Quantity per Reel: 2,000 pieces
  • Temperature Range: -55°C to 125°C
