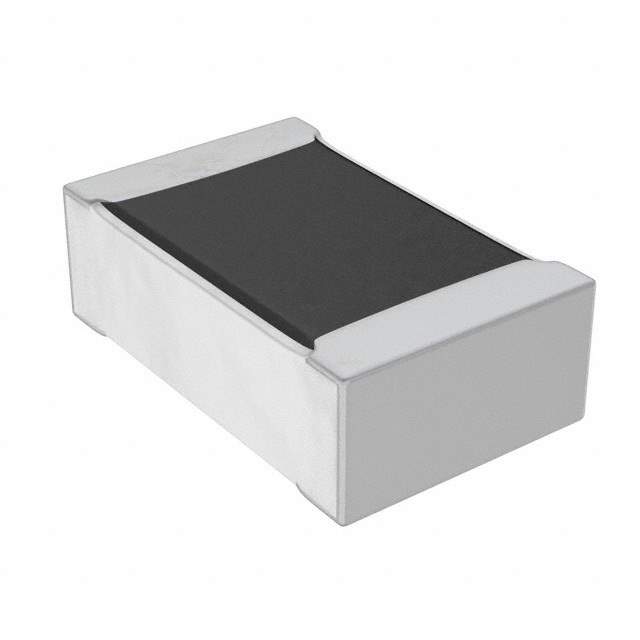

PFC-W0805LF-03-2323-B Real Image
Same model may have multiple batches, images only for reference.

PFC-W0805LF-03-2323-B

Part No PFC-W0805LF-03-2323-B
Manufacturer TT Electronics
Catalog Chip Resistor - Surface Mount
Description RES SMD 232K OHM 0.1% 1/4W 0805 / 232 kOhms ±0.1% 0.25W, 1/4W Chip Resistor 0805 (2012 Metric) Anti-Sulfur, Moisture Resistant Thin Film
Datasheet
PFC-W0805LF-03-2323-B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr TT Electronics/IRC
Series PFC - Precision
Package Cut Tape (CT)
Resistance 232 kOhms
Tolerance ±0.1%
Power (Watts) 0.25W, 1/4W
Composition Thin Film
Features Anti-Sulfur, Moisture Resistant
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -65°C ~ 150°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Dimension 0.081" L x 0.050" W (2.06mm x 1.27mm)
Height - Seated (Max) 0.026" (0.66mm)
Number of Terminations 2
Base Product Number PFC-W0805
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names 989-1227-6,PFCW0805LF032323B,4505086607,989-1227-2,989-1227-1,PFC-W0805LF-03-2323-B-1739
Standard Package 1,000
Win Source Part Number 1084633-PFC-W0805LF-03-2323-B
Ultra Librarian 3D Model Ultra Librarian PFC-W0805LF-03-2323-B CAD Model

Description

The PFC-W0805LF-03-2323-B from TT Electronics/IRC is a precision chip resistor that is ideal for a range of applications.

  • Resistance: 232 kOhms
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±25ppm/°C
  • Power Rating: 0.25W (1/4W)
  • Package: cut tape (CT)
  • Height: 0.026” (0.66mm)
  • Temperature Range: -65°C to 150°C
  • Standard Package: 1,000
  • Material Flammability: UL94 V-0 rated
  • Insulation Color: black
