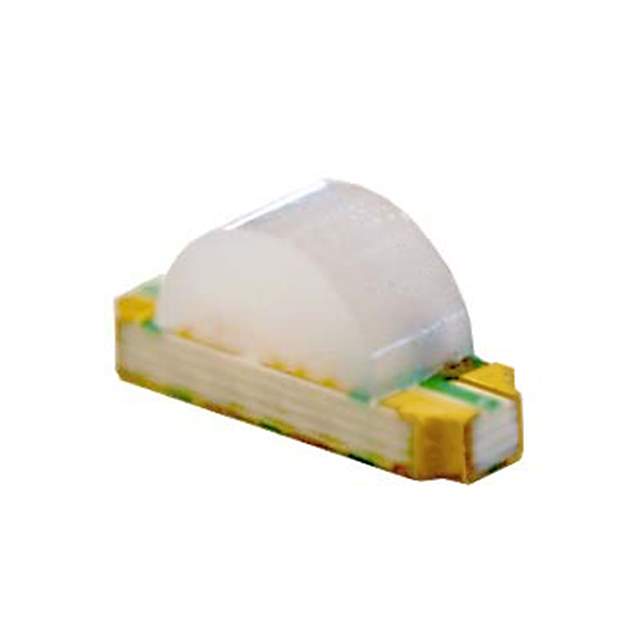

OVSRRGBCC3TM Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer TT Electronics/Optek Technology
Packaging Reel - TR
Status Active
Color Red, Green, Blue (RGB)
Configuration Common Anode
Lens Color White
Lens Transparency Diffused
Millicandela Rating 105mcd Red, 330mcd Green, 200mcd Blue
Lens Style/Size Rectangle with Domed Top, 2.00mm x 1.00mm
Forward Voltage 2V Red, 3.3V Green, 3.3V Blue
Current - Test 20mA Red, 20mA Green, 20mA Blue
Viewing Angle 150°
Mounting SMD (SMT)
Wavelength - Dominant 625nm Red, 530nm Green, 475nm Blue
Case / Package 1204
Height (Max) 1.50mm
Win Source Part Number 142648-OVSRRGBCC3TM
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name OVSRRGBCC3
ECCN EAR99
Country of Origin Taiwan
Halogen Free Unknown
Estimated EOL Date 2024
Quantity per package 1,500
Ultra Librarian 3D Model Ultra Librarian OVSRRGBCC3TM CAD Model

Description

The OVSRRGBCC3TM is a surface mount device (SMD) from TT Electronics/Optek Technology.

  • Family: OVSRRGBCC3
  • Shape: Rectangular
  • Lens Style: Domed top
  • Size: 2.00mm x 1.00mm
  • Configuration: Common anode
  • Color: Red, green, and blue (RGB)
  • Millicandela Rating: 105mcd for red, 330mcd for green, and 200mcd for blue
  • Forward Voltage: 2V for red, 3.3V for green, and 3.3V for blue
  • Viewing Angle: 150°
  • Lens Color: White
  • Category: Optoelectronics
  • Product Status: Active
  • Supply and Demand Status: Limited
  • Package: Reel of 1,500
