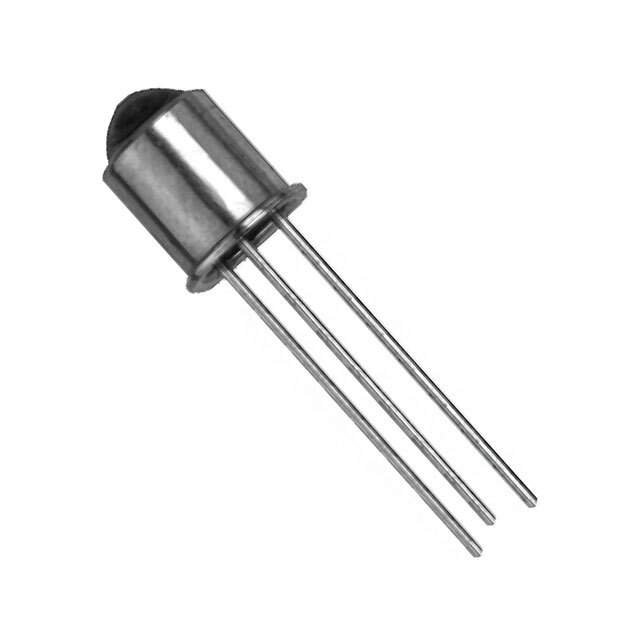

OP805TX Real Image
Same model may have multiple batches, images only for reference.

OP805TX

Part No OP805TX
Manufacturer TT Electronics
Catalog Optical Sensors - Phototransistors
Description SENSOR PHOTO 890NM TOP TO206AA / Phototransistors 890nm Top View TO-206AA, TO-18-3 Metal Can
Datasheet
OP805TX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Phototransistors
Mfr TT Electronics/Optek Technology
Package Bulk
Voltage - Collector Emitter Breakdown (Max) 30 V
Current - Collector (Ic) (Max) 50 mA
Current - Dark (Id) (Max) 100 nA
Wavelength 890nm
Viewing Angle 24°
Power - Max 250 mW
Mounting Type Through Hole
Orientation Top View
Temperature Range - Operating -65°C ~ 125°C (TA)
Package / Case TO-206AA, TO-18-3 Metal Can
Base Product Number OP805
Standard Package 100
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.7080
Win Source Part Number 1337004-OP805TX
Ultra Librarian 3D Model Ultra Librarian OP805TX CAD Model

Description

The electronic component with Id 1152283 is a phototransistor sensor manufactured by TT Electronics/Optek Technology.

  • Manufacturer: TT Electronics/Optek Technology
  • Win Source Part Number: 1337004-OP805TX
  • Packaging: Bulk
  • View Orientation: Top View
  • Standard Package: 100
  • Power (Max): 250 mW
  • Voltage (Max): 30 V
  • Viewing Angle: 24°
  • Wavelength: 890nm
  • Mounting Type: Through Hole
  • Package/Case: TO-206AA, TO-18-3 Metal Can
  • Operating Temperature: -65°C to 125°C (TA)
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS: 8541.49.7080
  • RoHS: Non-Compliant
  • Collector Current (Ic) (Max): 50 mA
  • Dark Current (Id) (Max): 100 nA
