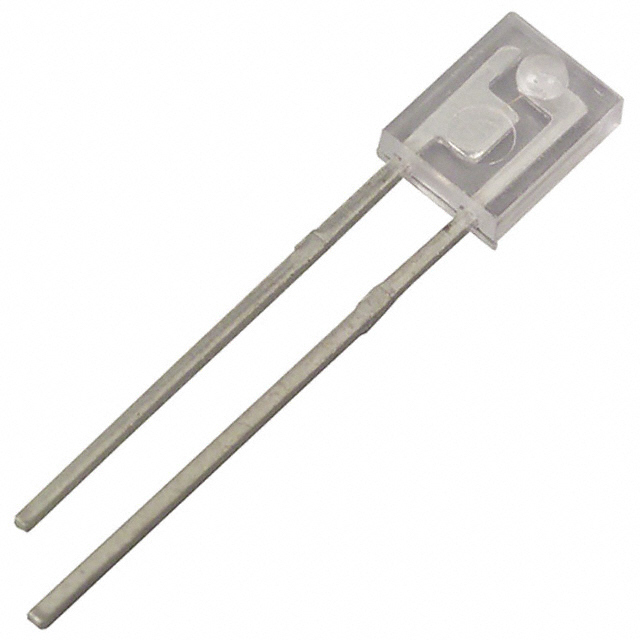

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Voltage - Collector Emitter Breakdown (Max) 15 V
Current - Collector (Ic) (Max) 9.8 mA
Current - Dark (Id) (Max) 100 nA
Wavelength 935nm
Viewing Angle 56°
Power - Max 100 mW
Mounting Type Through Hole
Orientation Side View
Temperature Range - Operating -40°C ~ 100°C
Case / Package Radial
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1599956-OP560C
Ultra Librarian 3D Model Ultra Librarian OP560C CAD Model
