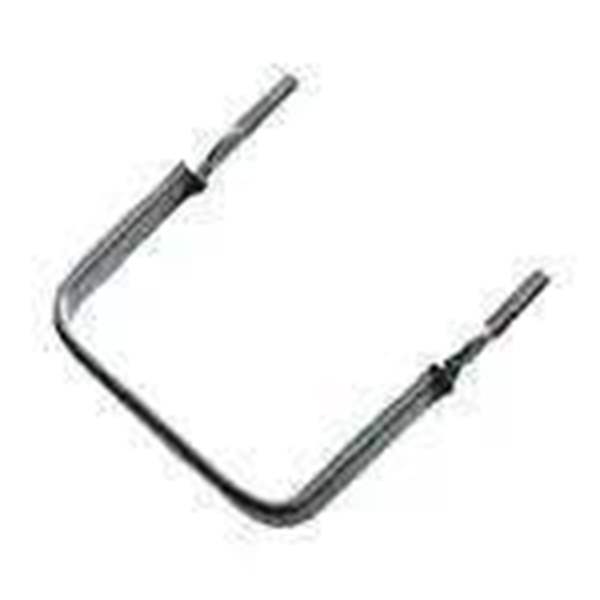

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1196660-OAR3-R005FI
Manufacturer TT Electronics
Category Current Sense Resistors - Through Hole
Series OAR
Termination Style Radial
Resistance 5 mOhms
Power Rating 3 W
Tolerance 1 %
Temperature Coefficient 20 PPM / C
Length 15.24 mm
Height 23.4 mm
Ultra Librarian 3D Model Ultra Librarian OAR3-R005FI CAD Model

Description

The OAR series current sense resistor from TT Electronics is a through-hole component with a radial termination style.

  • Length: 15.24 mm
  • Height: 23.4 mm
  • Resistance: 5 mOhms
  • Power (Watts): 3 W
  • Tolerance: 1%
  • Temperature Coefficient: 20 PPM / C
