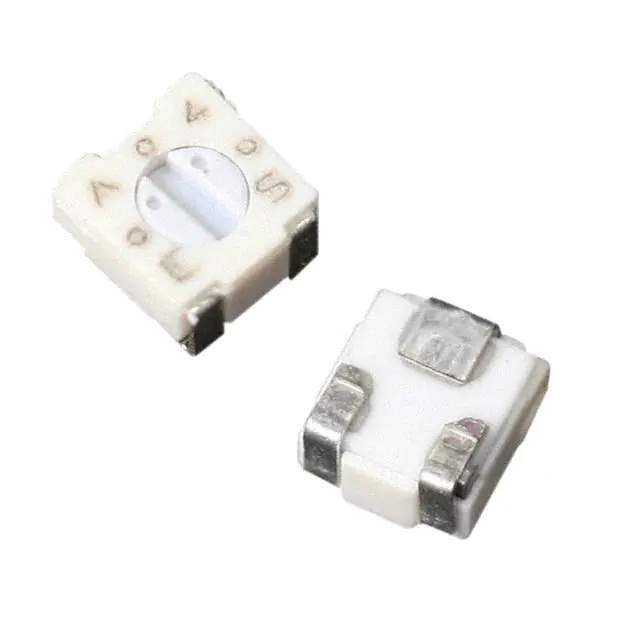

22AR100KLFTR Real Image
Same model may have multiple batches, images only for reference.

22AR100KLFTR

Part No 22AR100KLFTR
Manufacturer TT Electronics
Catalog Trimmer Potentiometers
Description TRIMMER 100K OHM 0.125W J LEAD
Datasheet
22AR100KLFTR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr TT Electronics
Series 22
Package Tape & Reel
Product Status Active
Resistance 100 kOhms
Power (Watts) 0.125W, 1/8W
Tolerance ±20%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Type Surface Mount
Termination Style J Lead
Size / Dimension Rectangular - 0.138" x 0.126" Face (3.50mm x 3.20mm)
Base Product Number 22AR
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8050
Win Source Part Number 854638-22AR100KLFTR
Ultra Librarian 3D Model Ultra Librarian 22AR100KLFTR CAD Model

Description

The 854638-22AR100KLFTR is a trimmer potentiometer from the 22 series.

  • Resistance: 100 kOhms
  • Tolerance: ±20%
  • Temperature Coefficient: ±100ppm/°C
  • Power Rating: 0.125W (1/8W)
  • Termination Style: J lead
  • Mounting Type: Surface mountable
  • Package: Tape & reel
  • Size: 0.138" x 0.126" face (3.50mm x 3.20mm)
  • Standard Package Quantity: 1,000 pcs
  • REACH: Unaffected
  • HTSUS Code: 8533.40.8050
