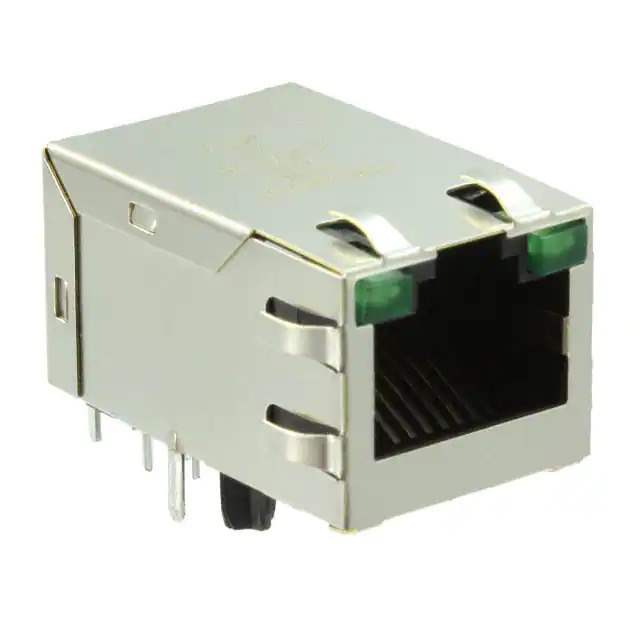

Same model may have multiple batches, images only for reference.

1840750-7

Name: 1840750-7
Brand: TRP Connector B.V.
SKU: 847804
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	1840750-7
Manufacturer	TRP Connector B.V.
Catalog	Modular Connectors
Description	CONN JACK 1PORT 1000 BASE-T PCB / 1 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Modular Connectors - Modular Connector Jacks With Magnetics
Mfr	TRP Connector B.V.
Series	MagJack®
Package	Bulk
Product Status	Obsolete
Connector Type	RJ45
Number of Ports	1
Number of Rows	1
Applications	10/100/1000 Base-T, AutoMDIX
Mounting Type	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Height Above Board	0.549" (13.95mm)
LED Color	Green - Green
Number of Cores per Jack	8
Shielding	Shielded, EMI Finger
Features	Board Guide
Tab Direction	Up
Contact Material	Phosphor Bronze
Contact Finish	Gold
Temperature Range - Operating	0°C ~ 70°C
Shield Material	Brass
Housing Material	Polyethylene Terephthalate (PET), Polyester
Standard Package	63 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	847804-1840750-7
Ultra Librarian 3D Model	Ultra Librarian 1840750-7 CAD Model

Alternative Products

Description

The MagJack Modular Connector Jack with Magnetics is a versatile connector commonly used in networking applications and manufactured by TRP Connector B.V.

Win Source Part Number: 847804-1840750-7
Series: MagJack
Orientation: 90-degree Angle
Shielding: EMI Finger
Application: 10/100/1000 Base-T and AutoMDIX
Contact Material: Phosphor Bronze
Termination: Solder
Standard Package: 63 pieces
Product Status: Obsolete
