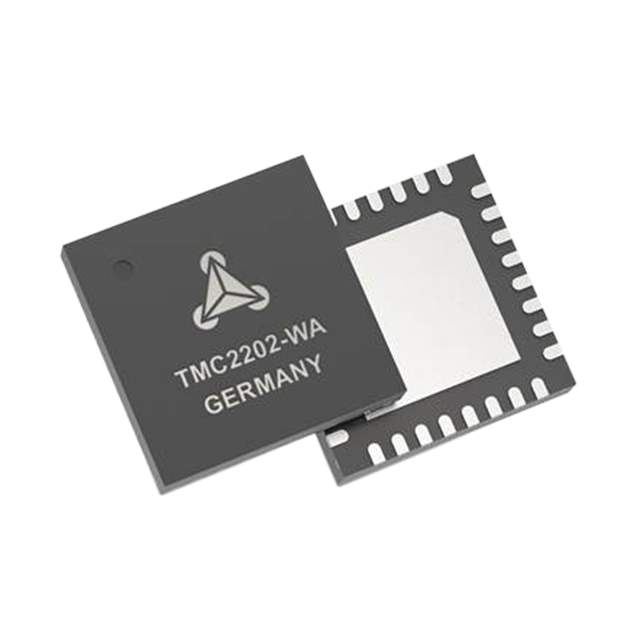

TMC2202-WA-T Real Image
Same model may have multiple batches, images only for reference.

TMC2202-WA-T

Part No TMC2202-WA-T
Manufacturer Trinamic Motion Control GmbH
Catalog PMIC - Motor Drivers, Controllers
Description IC MTR DRV BIPOLAR 5.5-36V 32QFN / Bipolar Motor Driver Power MOSFET Logic, UART 32-QFN (5x5)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Motor Drivers, Controllers
Mfr Trinamic Motion Control GmbH
Package Tape & Reel
Motor Type - Stepper Bipolar
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (4)
Interface Logic, UART
Technology Power MOSFET
Step Resolution 1 ~ 1/256
Applications General Purpose
Current - Output 1.2A
Voltage - Supply 5.5V ~ 36V
Voltage - Load 5.5V ~ 36V
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Surface Mount, Wettable Flank
Package / Case 32-VFQFN Exposed Pad
Supplier Device Package 32-QFN (5x5)
Base Product Number TMC2202
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Other Names 1460-1272-2,1460-1272-1,00-0159T,1460-1272-6
Standard Package 3,000
Win Source Part Number 989567-TMC2202-WA-T
Ultra Librarian 3D Model Ultra Librarian TMC2202-WA-T CAD Model

Description

The TMC2202-WA-T is a fully integrated driver for bipolar stepper motors.

  • Output Stage: Half-Bridge with Four Output Channels
  • Step Resolution: 1/256
  • Interface: Logic or UART
  • Voltage Range: 5.5V to 36V
  • Technology: Power MOSFET
  • Current Output: Up to 1.2A
  • Package: 32-VFQFN Exposed Pad
  • Mounting: Surface Mount and Wettable Flank
