Same model may have multiple batches, images only for reference.

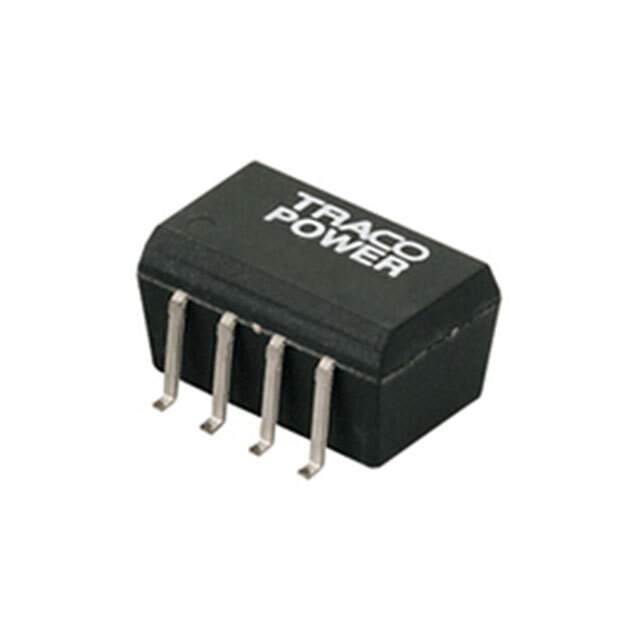

TSM 2412S Real Image
Same model may have multiple batches, images only for reference.

TSM 2412S

Part No TSM 2412S
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 1W / Isolated Module DC DC Converter 1 Output 12V 80mA 21.6V - 26.4V Input
Datasheet
TSM 2412S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Voltage - Output 1 12V
Current - Output (Max) 80mA
Power (Watts) 1 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 81%
Mounting Surface Mount
Case / Package 14-SMD Module, 8 Leads
Size / Dimension 0.60" L x 0.31" W x 0.32" H (15.2mm x 8.0mm x 8.1mm)
Base Product Number TSM 2412
RoHS Status ROHS3 Compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TSM2412S,TSM 2412S-ND
Standard Package 10
Win Source Part Number 1336403-TSM 2412S
Ultra Librarian 3D Model Ultra Librarian TSM 2412S CAD Model

Description

The Traco Power TSM 2412S is a power supply board mount DC-DC converter with a packaging tube.

  • Type: Isolated module
  • Features: SCP feature
  • Size/Dimension: 0.60 inches in length, 0.31 inches in width, and 0.32 inches in height
  • Efficiency: 81 percent
  • Output Current: Up to 80mA
  • Voltage Input: 21.6V to 26.4V
  • Voltage Isolation: 1 kV
  • Output Voltage: One output of 12V
  • Application: ITE (Commercial) applications
