Same model may have multiple batches, images only for reference.

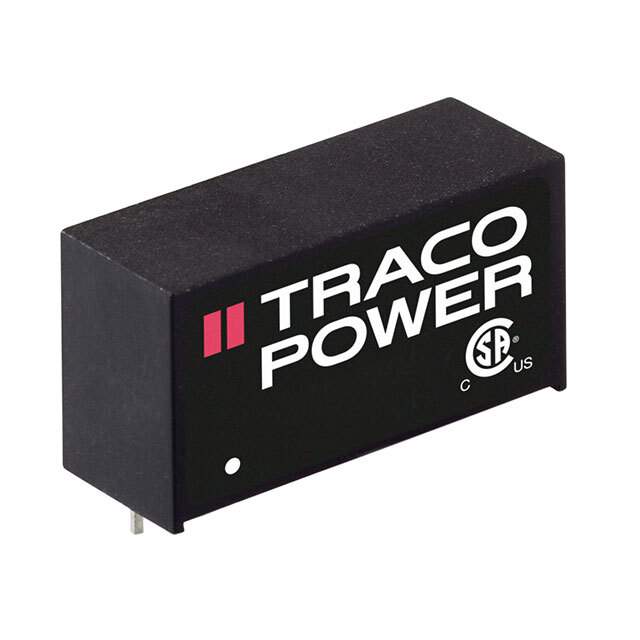

TMV 2405SHI Real Image
Same model may have multiple batches, images only for reference.

TMV 2405SHI

Part No TMV 2405SHI
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA 24V - 26.4V Input
Datasheet
TMV 2405SHI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Traco Power
Series TMV-HI (1W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 24V
Voltage - Input (Max) 26.4V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) 1 W
Voltage - Isolation 5.2 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 95°C (With Derating)
Efficiency 70%
Mounting Type Through Hole
Package / Case 7-SIP Module, 4 Leads
Size / Dimension 0.77" L x 0.30" W x 0.40" H (19.5mm x 7.5mm x 10.2mm)
Base Product Number TMV 2405
Standard Package 10
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1339980-TMV 2405SHI
Ultra Librarian 3D Model Ultra Librarian TMV 2405SHI CAD Model

Description

The TMV 2405SHI is an isolated module DC-DC converter that is designed for use in ITE (Commercial) applications.

  • Series: TMV-HI (1W)
  • Application: ITE (Commercial)
  • Power Output: 1W
  • Efficiency: 70%
  • Voltage Isolation: 5.2 kV
  • Manufacturer: Traco Power
  • Mounting Type: Through-hole
  • Package/Case: 7-SIP module with four leads
  • Operating Temperature: -40°C to 95°C with derating
  • REACH: Unaffected
  • California Prop 65: Not subject to warning information
