Same model may have multiple batches, images only for reference.

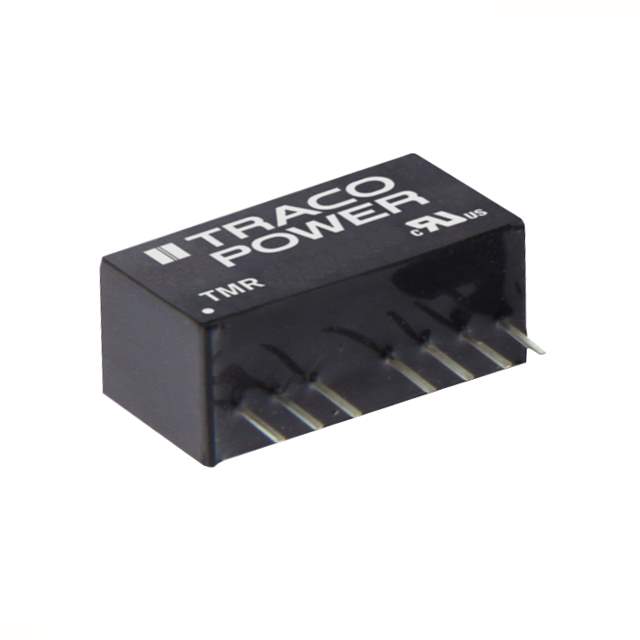

TMR 6-4822 Real Image
Same model may have multiple batches, images only for reference.

TMR 6-4822

Part No TMR 6-4822
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 6W / Isolated Module DC DC Converter 2 Output 12V -12V 250mA, 250mA 36V - 75V Input
Datasheet
TMR 6-4822 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 250mA, 250mA
Power (Watts) 6 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 65°C
Efficiency 84%
Mounting Through Hole
Case / Package 8-SIP Module, 7 Leads
Size / Dimension 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm)
Base Product Number TMR 6
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TMR6-4822,TMR 6-4822-ND
Standard Package 10
Win Source Part Number 1336279-TMR 6-4822
Ultra Librarian 3D Model Ultra Librarian TMR 6-4822 CAD Model

Description

The Traco Power TMR 6-4822 is a DC-DC converter module that comes in an 8-SIP package with 7 leads.

  • Power Output: 6 watts
  • Features: Remote On/Off and SCP
  • Size: 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm)
  • Application: ITE (Commercial) applications
  • Input Voltage: 36V to 75V
  • Isolation Voltage: 1.6 kV
  • Outputs: Two
  • Maximum Current Output: 250mA per output
  • Output Voltages: 12V and -12V
  • Efficiency: 84%
  • Operating Temperature: -40°C to 65°C
  • Compliance: ROHS3 compliant
  • Package: 10
