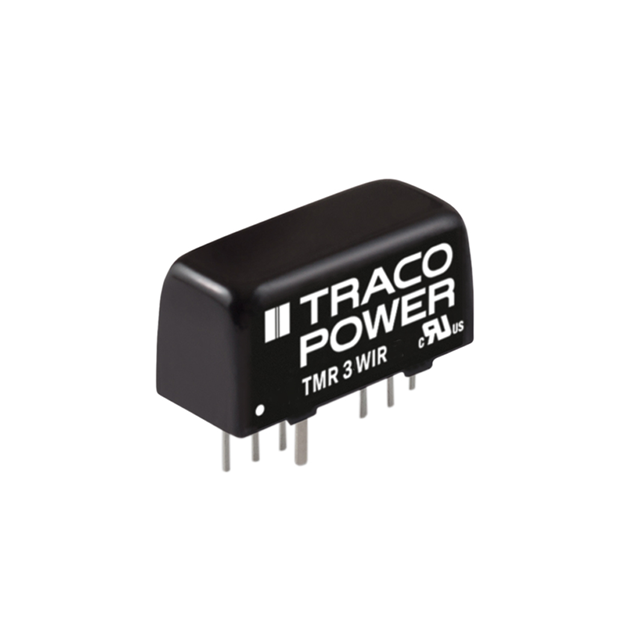

TMR 3-4815WIR Real Image
Same model may have multiple batches, images only for reference.

TMR 3-4815WIR

Part No TMR 3-4815WIR
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 24V 3W / Isolated Module DC DC Converter 1 Output 24V 125mA 18V - 75V Input
Datasheet
TMR 3-4815WIR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 24V
Current - Output (Max) 125mA
Power (Watts) 3 W
Voltage - Isolation 3 kV
Applications ITE (Commercial), Railway
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 90°C (With Derating)
Efficiency 82%
Mounting Through Hole
Case / Package 8-SIP Module
Size / Dimension 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm)
Base Product Number TMR 3
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-1999
Standard Package 10
Win Source Part Number 1336227-TMR 3-4815WIR
Ultra Librarian 3D Model Ultra Librarian TMR 3-4815WIR CAD Model

Description

This electronic component is a product of Traco Power manufacturer which is available for purchase.

  • Win Source Part Number: 1336227-TMR 3-4815WIR
  • Category: Power Supplies - Board Mount>DC DC Converters
  • Packaging: Tube
  • Type: Isolated module
  • Features: Remote On/Off and SCP
  • Size/Dimension: 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm)
  • Applications: ITE (Commercial), Railway
  • Standard Package: 10
  • Mounting: Through hole
  • Power: 3W
  • Voltage-Isolation: 3kV
  • Outputs: One
  • Maximum Current Output: 125mA
  • Input Voltage: 18V to 75V
  • Output Voltage: 24V
  • Efficiency: 82%
  • Temperature Range: -40°C ~ 90°C (With Derating)
  • Case/Package: 8-SIP Module
  • ROHS3 Compliant: Yes
  • REACH: Unaffected
  • ECCN: EAR99
  • HTSUS: 8504.40.9580
  • Other Part Number: 1951-1999
