Same model may have multiple batches, images only for reference.

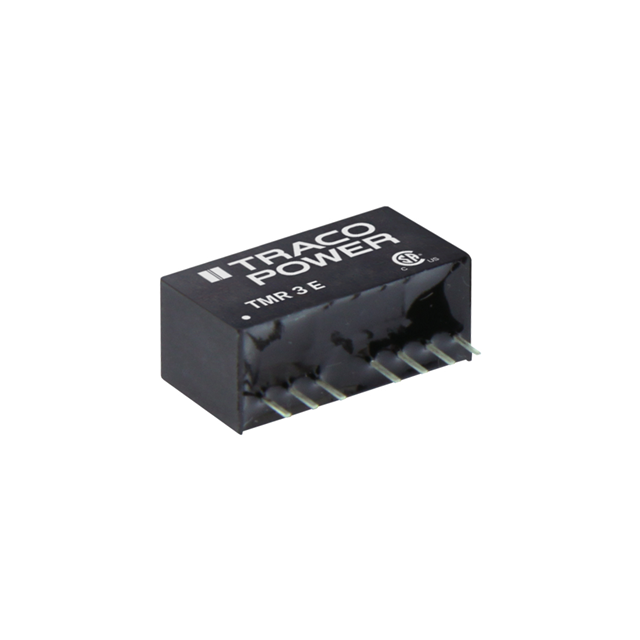

TMR 3-2423E Real Image
Same model may have multiple batches, images only for reference.

TMR 3-2423E

Part No TMR 3-2423E
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 3W / Isolated Module DC DC Converter 2 Output 15V -15V 100mA, 100mA 18V - 36V Input
Datasheet
TMR 3-2423E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 100mA, 100mA
Power (Watts) 3 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 83%
Mounting Through Hole
Case / Package 8-SIP Module, 7 Leads
Size / Dimension 0.86" L x 0.37" W x 0.44" H (21.8mm x 9.3mm x 11.2mm)
Base Product Number TMR 3
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-2377
Standard Package 10
Win Source Part Number 1336220-TMR 3-2423E
Ultra Librarian 3D Model Ultra Librarian TMR 3-2423E CAD Model

Description

The electronic component with Id 1149660 is an isolated module type DC DC converter manufactured by Traco Power.

  • Power: 3W
  • Voltage Isolation: 1.5kV
  • Outputs: two outputs
  • Current - Output (Max): 100mA and 100mA respectively
  • Voltage - Input: between 18V and 36V
  • Voltage - Output: 15V and -15V respectively
  • Efficiency: 83%
  • Operating Temperature: -40°C and 85°C (With Derating)
  • Package: 8-SIP Module, 7 Leads
  • ROHS3 compliant: Yes
