Same model may have multiple batches, images only for reference.

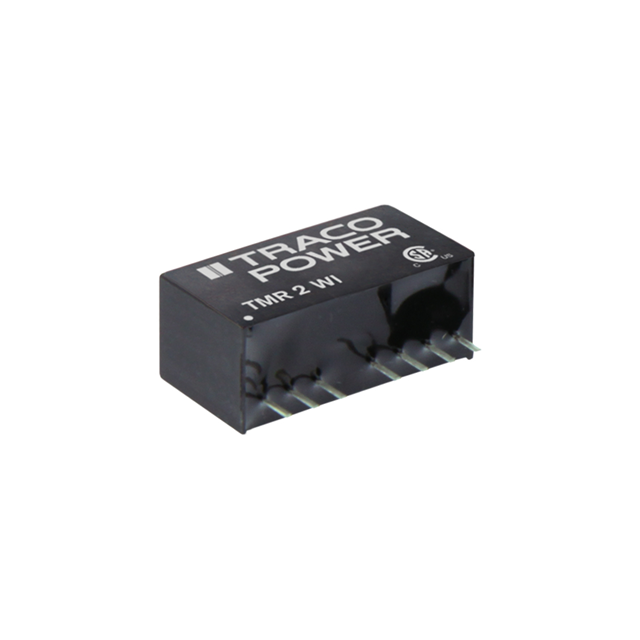

TMR 2-4822WI Real Image
Same model may have multiple batches, images only for reference.

TMR 2-4822WI

Part No TMR 2-4822WI
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 2W / Isolated Module DC DC Converter 2 Output 12V -12V 85mA, 85mA 18V - 75V Input
Datasheet
TMR 2-4822WI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 85mA, 85mA
Power (Watts) 2 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 76%
Mounting Through Hole
Case / Package 9-SIP Module, 7 Leads
Size / Dimension 1.02" L x 0.37" W x 0.49" H (26.0mm x 9.3mm x 12.5mm)
Base Product Number TMR 2
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-2360
Standard Package 10
Win Source Part Number 1336169-TMR 2-4822WI
Ultra Librarian 3D Model Ultra Librarian TMR 2-4822WI CAD Model

Description

This electronic component is a DC-DC converter device from Traco Power.

  • Product Type: 2W isolated module
  • Features: Remote On/Off and SCP
  • Application: ITE (Commercial)
  • Voltage Isolation: 1.5 kV
  • Outputs: 2
  • Maximum Output Current 1: 85mA
  • Maximum Output Current 2: 85mA
  • Voltage Input: 18V to 75V
  • Voltage Output 1: 12V
  • Voltage Output 2: -12V
  • Efficiency: 76%
  • Operating Temperature: -40°C ~ 85°C (With Derating)
  • ROHS3: Compliant
