Same model may have multiple batches, images only for reference.

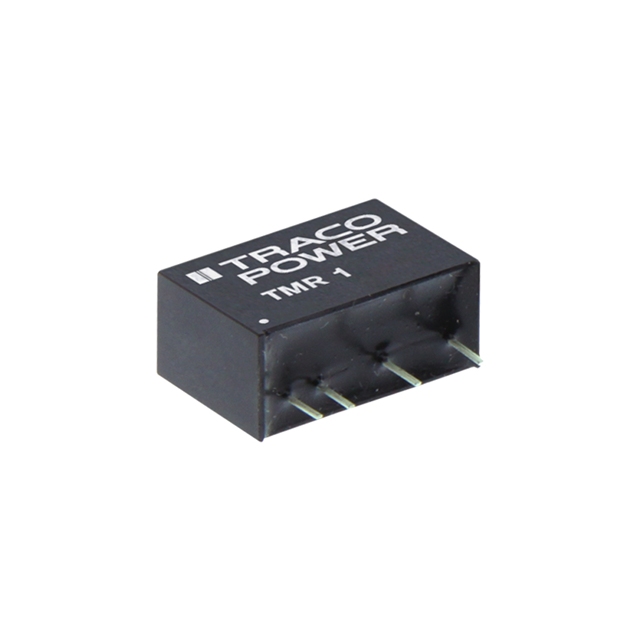

TMR 1-1222 Real Image
Same model may have multiple batches, images only for reference.

TMR 1-1222

Part No TMR 1-1222
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 1W / Isolated Module DC DC Converter 2 Output 12V -12V 42mA, 42mA 9V - 18V Input
Datasheet
TMR 1-1222 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 42mA, 42mA
Power (Watts) 1 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features OCP, SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 79%
Mounting Through Hole
Case / Package 6-SIP Module, 5 Leads
Size / Dimension 0.67" L x 0.30" W x 0.43" H (17.0mm x 7.6mm x 11.0mm)
Supplier Device Package Module
Approval Agency CB, CSA
Base Product Number TMR 1
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-3185,TMR 1-1222-ND,TMR1-1222-ND,TMR1-1222
Standard Package 10
Win Source Part Number 1336124-TMR 1-1222
Ultra Librarian 3D Model Ultra Librarian TMR 1-1222 CAD Model

Description

This Traco Power electronic component is a DC DC converter with a maximum output current of 42mA and a maximum power of 1W.

  • Type: Isolated module
  • Features: OCP and SCP features
  • Outputs: Two
  • Voltage Outputs: 12V and -12V
  • Input Voltage: 9V to 18V
  • Voltage Isolation: 1.5 kV
  • Efficiency: 79%
  • Operating Temperature: -40°C to 85°C
  • Compliance: RoHS3 compliant
  • Supplier Device Package: Module
  • Application: ITE (Commercial) applications
  • Package: Standard package of 10
