Same model may have multiple batches, images only for reference.

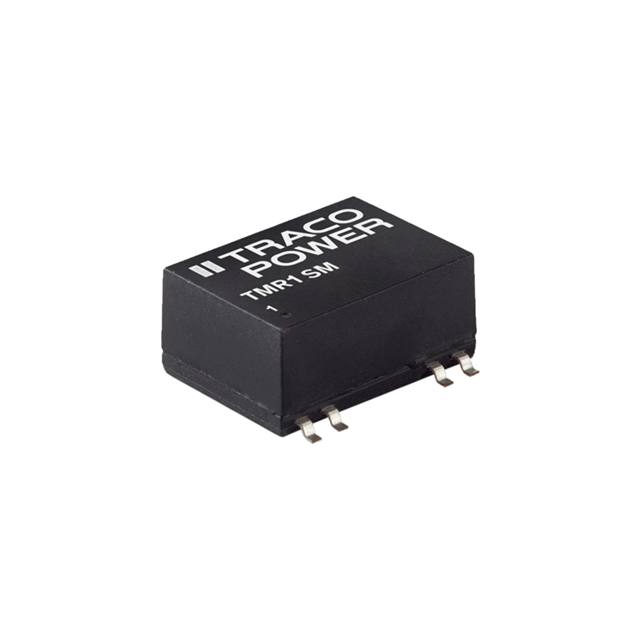

TMR 1-0512SM Real Image
Same model may have multiple batches, images only for reference.

TMR 1-0512SM

Part No TMR 1-0512SM
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 1W / Isolated Module DC DC Converter 1 Output 12V 83mA 4.5V - 9V Input
Datasheet
TMR 1-0512SM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Traco Power
Series TMR 1SM (1W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 9V
Voltage - Output 1 12V
Current - Output (Max) 83mA
Power (Watts) 1 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, SCP
Temperature Range - Operating -40°C ~ 82°C (With Derating)
Efficiency 79%
Mounting Type Surface Mount
Package / Case 14-SMD Module, 7 Leads
Size / Dimension 0.74" L x 0.54" W x 0.34" H (18.9mm x 13.7mm x 8.7mm)
Supplier Device Package Module
Approval Agency CB, CSA
Base Product Number TMR 1
Standard Package 10
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1350501-TMR 1-0512SM
Ultra Librarian 3D Model Ultra Librarian TMR 1-0512SM CAD Model

Description

The TMR 1SM (1W) series is a category of isolated module DC-DC converters with a power of 1W and a voltage isolation of 1.5 kV.

  • Power: 1W
  • Voltage Isolation: 1.5 kV
  • Current Output: 83mA
  • Efficiency: 79%
  • Voltage Input Range: 4.5V to 9V
  • Voltage Output: 12V
  • Package: Tube
  • Standard Package: 10
  • Mounting Type: Surface Mount
  • REACH: Unaffected
  • Manufacturer: Traco Power
  • Approval Agency: CB, CSA
