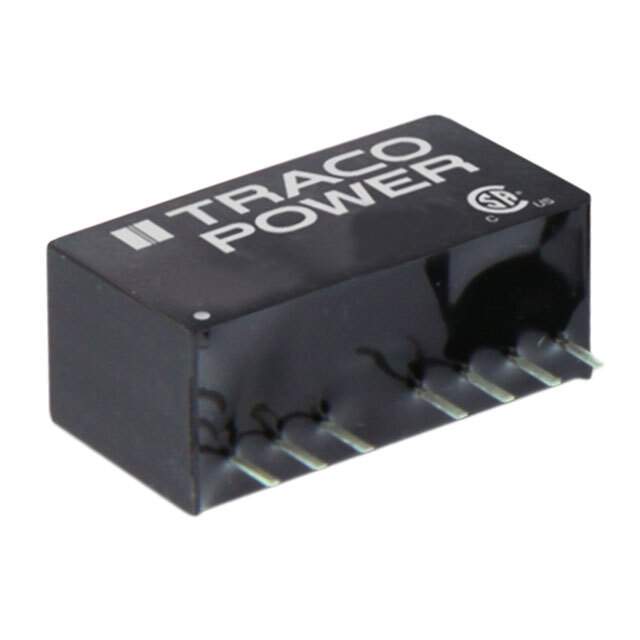

Same model may have multiple batches, images only for reference.

TMR 0522

Name: TMR 0522
Brand: Traco Power
SKU: 1336114
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TMR 0522
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 2W / Isolated Module DC DC Converter 2 Output 12V -12V 85mA, 85mA 4.5V - 9V Input
Datasheet	TMR 0522 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	9V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	85mA, 85mA
Power (Watts)	2 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	82%
Mounting	Through Hole
Case / Package	8-SIP Module, 7 Leads
Size / Dimension	0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
Supplier Device Package	Module
Base Product Number	TMR 05
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	1951-2331
Standard Package	10
Win Source Part Number	1336114-TMR 0522
Ultra Librarian 3D Model	Ultra Librarian TMR 0522 CAD Model

Alternative Products

Description

The TMR 0522 is an isolated module DC-DC converter manufactured by Traco Power.

Packaging: Tube
Mounting: Through hole
Power Rating: 2W
Outputs: Two
Maximum Output Current: 85mA for both outputs
Input Voltage: Between 4.5V and 9V
Output Voltage: 12V (output 1) and -12V (output 2)
Efficiency: 82%
Features: Remote on/off and SCP
Voltage Isolation: 1.5kV
Operating Temperature: -40°C to 85°C
Package Type: 8-SIP module with 7 leads
Series: BLM15H series
Compliance: ROHS3 compliant
