Same model may have multiple batches, images only for reference.

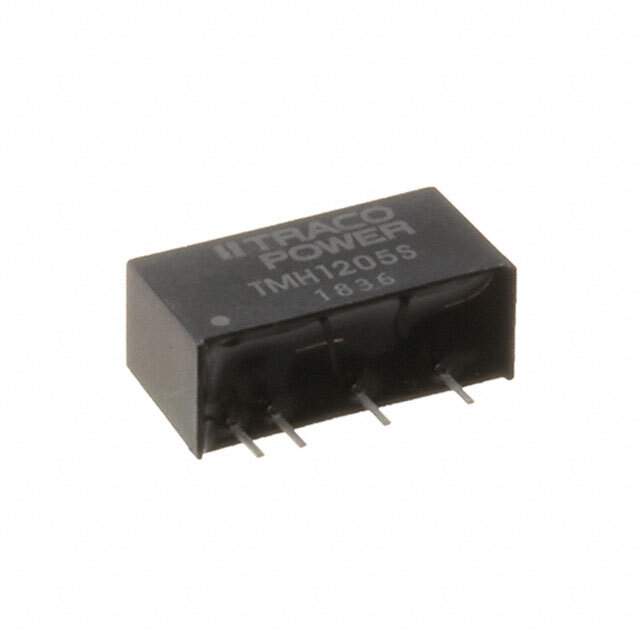

TMH 1205S Real Image
Same model may have multiple batches, images only for reference.

TMH 1205S

Part No TMH 1205S
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 2W / Isolated Module DC DC Converter 1 Output 5V 400mA 12V - 13.2V Input
Datasheet
TMH 1205S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Traco Power
Series TMH (2W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 12V
Voltage - Input (Max) 13.2V
Voltage - Output 1 5V
Current - Output (Max) 400mA
Power (Watts) 2 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 78%
Mounting Type Through Hole
Package / Case 7-SIP Module, 4 Leads
Dimension 0.94" L x 0.54" W x 0.31" H (23.8mm x 13.7mm x 8.0mm)
Base Product Number TMH 1205
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 1951-2670
Standard Package 10
Win Source Part Number 1061526-TMH 1205S
Ultra Librarian 3D Model Ultra Librarian TMH 1205S CAD Model

Description

This electronic component is a power supply board mount DC-DC converter with a Win Source Part Number of 1061526-TMH 1205S.

  • Series: TMH (2W) series
  • Type: isolated module type with SCP features
  • Power Output: 2W
  • Voltage Isolation: 1kV
  • Current Output: 400mA
  • Voltage Input Range: 12V to 13.2V
  • RoHS Compliant: Yes
  • Operating Temperature: -40°C to 85°C with derating
