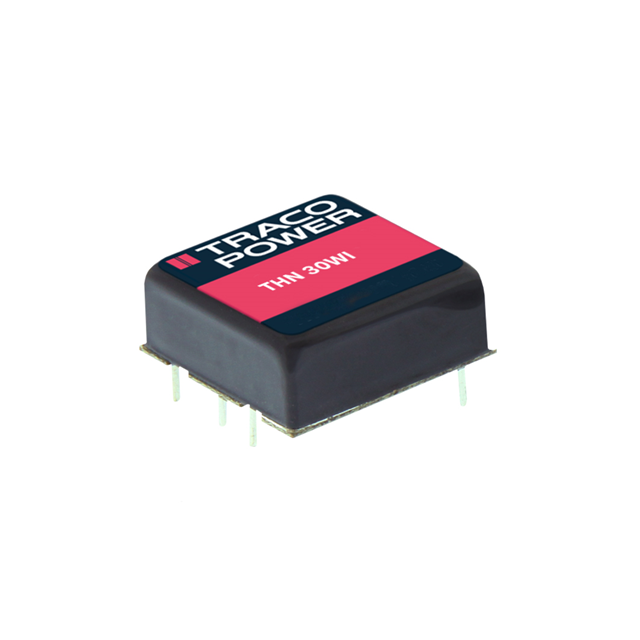

THN 30-2422WI Real Image
Same model may have multiple batches, images only for reference.

THN 30-2422WI

Part No THN 30-2422WI
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 30W / Isolated Module DC DC Converter 2 Output 12V -12V 1.25A, 1.25A 9V - 36V Input
Datasheet
THN 30-2422WI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 1.25A, 1.25A
Power (Watts) 30 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OTP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 80°C (With Derating)
Efficiency 89%
Mounting Through Hole
Case / Package 6-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Approval Agency CB, cURus
Base Product Number THN 30
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number THN 30-2422WI-ND,THN30-2422WI
Standard Package 10
Win Source Part Number 1336054-THN 30-2422WI
Ultra Librarian 3D Model Ultra Librarian THN 30-2422WI CAD Model

Description

The Traco Power THN 30-2422WI is a DC-DC converter with a power rating of 30 W.

  • Type: Isolated module
  • Voltage Isolation: 1.5 kV
  • Features: Remote On/Off, OTP, OVP, SCP, UVLO
  • Size: 1.00" L x 1.00" W x 0.39" H
  • Application: ITE (Commercial)
  • Mounting: Through-hole
  • Packaging: 6-DIP Module
  • Number of Outputs: Two
  • Maximum Output Current: 1.25A
  • Output Voltage: 12V and -12V respectively
  • Input Voltage Range: 9V to 36V
  • Efficiency: 89%
  • Operating Temperature: -40°C to 80°C with derating
