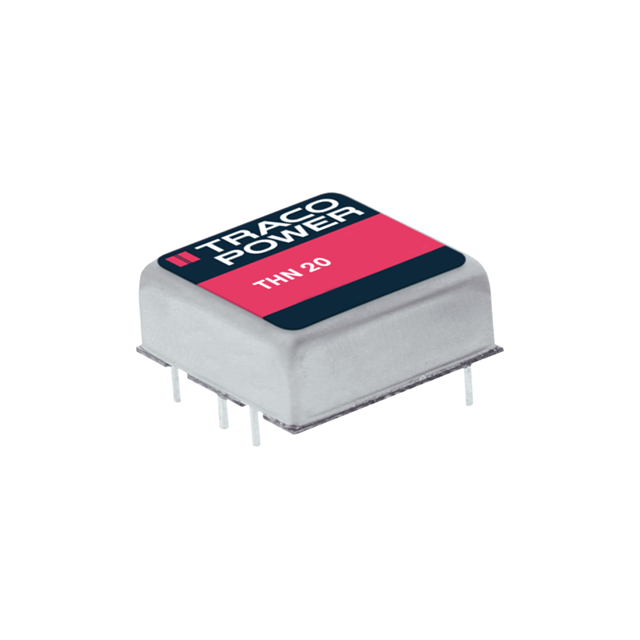

THN 20-2423 Real Image
Same model may have multiple batches, images only for reference.

THN 20-2423

Part No THN 20-2423
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 20W / Isolated Module DC DC Converter 2 Output 15V -15V 667mA, 667mA 18V - 36V Input
Datasheet
THN 20-2423 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 667mA, 667mA
Power (Watts) 20 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OVP, SCP
Temperature Range - Operating -40°C ~ 75°C (With Derating)
Efficiency 90%
Mounting Through Hole
Case / Package 6-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Base Product Number THN 20
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-1701
Standard Package 10
Win Source Part Number 1336012-THN 20-2423
Ultra Librarian 3D Model Ultra Librarian THN 20-2423 CAD Model

Description

The Traco Power THN 20-2423 is an isolated module DC-DC converter with a power output of 20 W.

  • Application: ITE (Commercial)
  • Voltage Input Range: 18V to 36V
  • Features: Remote on/off, OVP (Over Voltage Protection) and SCP (Short Circuit Protection)
  • Output Voltages: 15V and -15V
  • Maximum Output Current (each output): 667mA
  • Isolation Voltage: 1.5 kV
  • Efficiency: 90%
  • Size: 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
  • Mounting Type: Through Hole
  • Operating Temperature Range: -40°C to 75°C (With Derating)
  • ROHS3 Compliant: Yes
